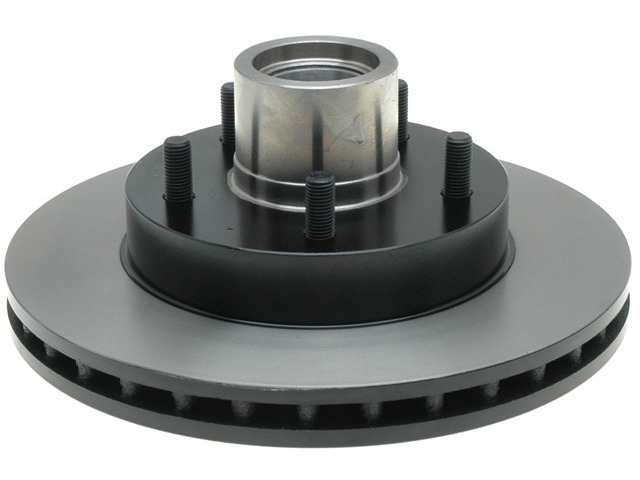

Raybestos Brakes Disc Brake Rotor and Hub Assembly P/N:56757
$93.99
(You save)
Give the front brakes a fresh friction surface and integrated wheel hub in one unit with the Raybestos Brakes Disc Brake Rotor and Hub Assembly, part number 56757. It's cataloged as a front-axle rotor-and-hub assembly for the 1995-1997 Chevrolet Blazer, 1995-2003 Chevrolet S10, 1995-1997 GMC Jimmy, 1995-2003 GMC Sonoma, 1996-2000 Isuzu Hombre, and 1996 Oldsmobile Bravada.
Front-axle unit: the catalog lists this as a front position rotor-and-hub assembly for the applications above.
Non-directional brake surface: the machined finish lets the same part work on either side of the axle.
5-lug hub: 5 stud/lug holes plus 5 mounting bolt holes on a 4.75 in (120.65 mm) bolt circle with 0.488 in (12.4 mm) holes.
Thickness spec: nominal 1.04 in (26.4 mm) with a 0.97 in (24.65 mm) discard/minimum thickness; overall height 4.31 in (109.45 mm).
Raybestos builds its Truck & Medium Duty line for the truck market. Many of the listed applications use two per axle, so replace the left and right sides together as a matched pair for more balanced braking; this listing is for one assembly. Country of origin: China. Manufacturer part number 56757.
Frequently Asked Questions
Which vehicles does part 56757 fit?
The listed front applications: 1995-1997 Chevrolet Blazer, 1995-2003 Chevrolet S10, 1995-1997 GMC Jimmy, 1995-2003 GMC Sonoma, 1996-2000 Isuzu Hombre, and 1996 Oldsmobile Bravada.
Is this a front or rear unit?
The catalog lists it as a front-axle disc brake rotor and hub assembly for the applications above.
How many should I order?
Many of the listed applications use two per axle. This listing is for one assembly; replacing the left and right sides together as a matched pair gives more balanced braking.
How many lugs does it have?
It has 5 stud/lug holes and 5 mounting bolt holes on a 4.75 in (120.65 mm) bolt circle.
What is the discard thickness?
Nominal thickness is 1.04 in (26.4 mm) and the discard/minimum thickness is 0.97 in (24.65 mm). Measure and replace before it reaches the discard thickness.
Write a Review
Raybestos
Raybestos Brakes Disc Brake Rotor and Hub Assembly P/N:56757

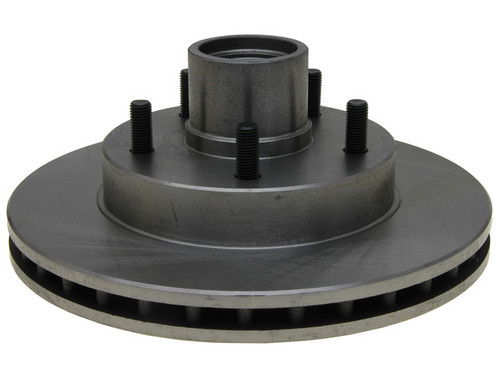

Keep your front brakes running true with the Raybestos R-Line Disc Brake Rotor and Hub Assembly 56757R — a front-axle rotor with an integrated hub that installs as a direct-fit replacement for the...

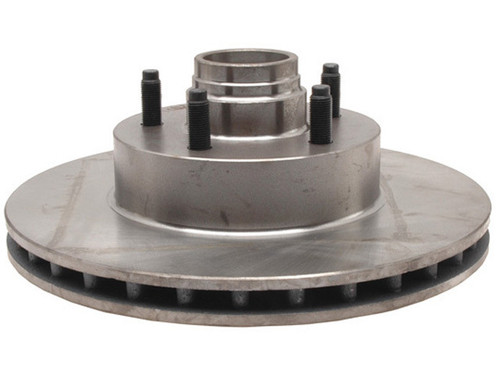

Keep your front wheels turning true and your braking surfaces fresh with the Raybestos R-Line Disc Brake Rotor and Hub Assembly 680093R. This front rotor-and-hub combines the friction surface and...
