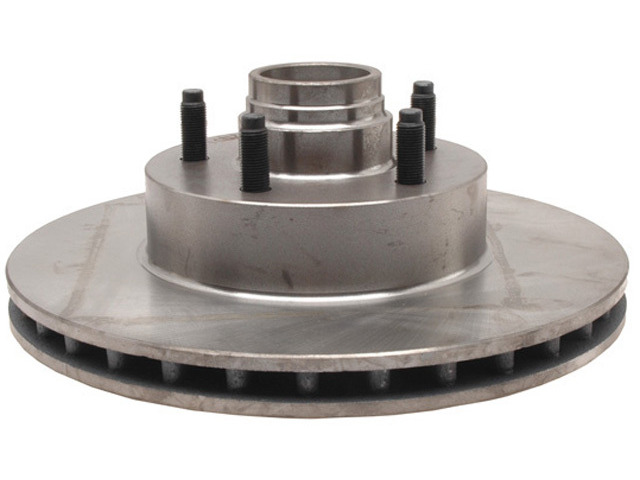

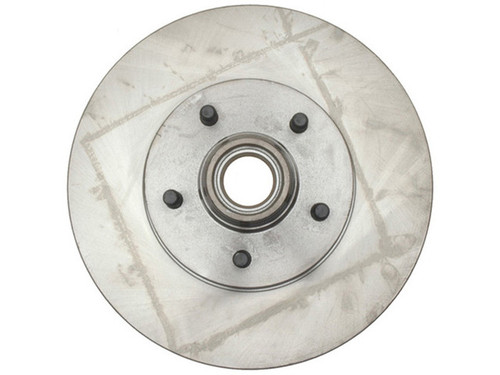

Keep your front wheels turning true and your braking surfaces fresh with the Raybestos R-Line Disc Brake Rotor and Hub Assembly 680093R. This front rotor-and-hub combines the friction surface and wheel hub in one unit and drops in as a direct-fit replacement for the 1998-2000 Ford Ranger (All engines). Raybestos R-Line rotors are created for everyday driving conditions, delivering dependable, application-specific stopping performance.
- Integrated rotor & hub: a single front assembly pairing the braking surface with the wheel hub.
- 5-lug design: 5 stud/lug holes on a 4.5 in (114.3 mm) bolt circle, with 5 mounting bolt holes.
- Machined to spec: nominal thickness 1.025 in (26.05 mm); machine-to-discard thickness 0.965 in (24.5 mm).
- Everyday R-Line quality: built for reliable, safe, application-specific performance.
Signs a rotor and hub may need replacing include vibration or pulsation through the pedal, scoring, or wheel-bearing noise. Listed applications use 2 per vehicle; sold individually — order 2 and replace both front sides together as a matched set for even, balanced braking. Country of origin: China.
Interchange: 145366 · YH145366 · 54104 · DL54104 · 125495 · 680093 · 680093RGS · 81-125773 · 81125773 · BD125773 · 120.65051 · BR54104 · XL5Z1102FA · BRR104 · X51467 · 443213. Manufacturer part number 680093R · Part Eazy SKU 680093R.
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
What vehicle does this rotor and hub assembly fit?
It is a direct-fit front replacement for the 1998-2000 Ford Ranger (All engines). See the Buyer's Guide tab to confirm fitment for your vehicle.
How many do I need?
The listed applications use 2 per vehicle. It's sold individually, so order 2 and replace both front sides together as a matched set for even braking.
What are the thickness specifications?
Nominal thickness is 1.025 in (26.05 mm) and the machine-to-discard thickness is 0.965 in (24.5 mm).
What is the bolt pattern?
It has 5 stud/lug holes on a 4.5 in (114.3 mm) bolt circle, with 5 mounting bolt holes (0.54 in / 13.7 mm).
When should I consider replacing this rotor and hub?
Signs it may need replacing include pedal vibration or pulsation, scored braking surfaces, or wheel-bearing noise. Diagnose the cause before replacing.
