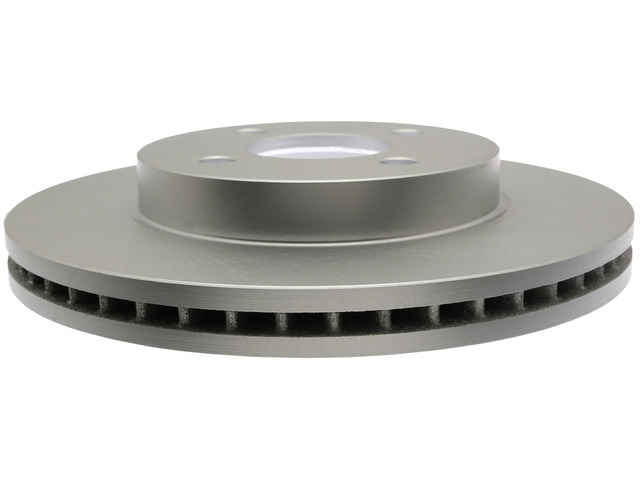

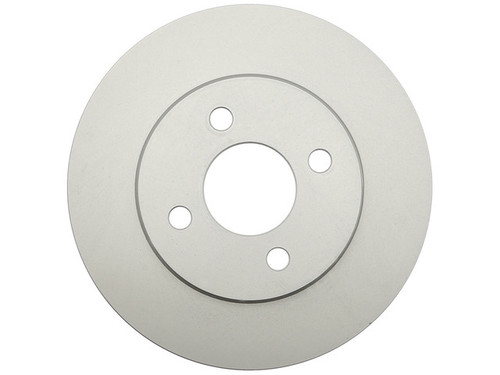

Bring smooth, confident braking back to your ride with the Raybestos Brakes Element3 Coated Disc Brake Rotor (MPN 580633FZN) — a direct-fit front chevy Cobalt brake rotor for the 2008-2010 Chevrolet Cobalt [All] and 2008-2010 Pontiac G5 [All]. This conventional, vented cast-iron rotor uses a proprietary finishing technology to coat the entire surface, including the cooling vanes.
Built to OE-matched precision and performance. The rotor uses 4 stud holes on a 99.8 mm (3.93 in) bolt circle, with a 24.15 mm (0.95 in) nominal thickness and a 22.1 mm (0.87 in) discard thickness marked for service reference. Sold individually — the listed applications use two rotors up front, so replacing both sides as a matched pair is recommended for even, balanced braking. Country of origin: China.
Interchange: 120.62072 · 121.62072 · BR900646-01
12062072 · 12162072 · BR90064601 · YH145419 · AX900646 · PRT5899 · 25010559 · 580633R · 580633RGS · BR900598 · BR900646 · 19303829 · 25836294 · 25863339 · 55152 · TN580633GEO · SB580633
This part cross-references / interchanges with the following part numbers:
Does this rotor fit my 2008-2010 Chevrolet Cobalt?
Yes. It is a direct-fit front rotor for the 2008-2010 Chevrolet Cobalt [All] and the 2008-2010 Pontiac G5 [All]. Confirm your specific vehicle against the Buyer's Guide tab before ordering.
Is this a front or rear brake rotor?
This is a front rotor for the listed applications.
How many rotors do I need?
This listing is for one rotor. The listed applications use two rotors up front, so replacing both sides as a matched pair is recommended for even, balanced braking.
Is this a vented rotor?
Yes. It is a conventional, vented cast-iron rotor with internal cooling vanes, and those vanes are coated to help keep them clear of rust and corrosion for airflow and cooling.
What is the Grey Fusion 4.0 coating?
It is Raybestos Element3 proprietary coating applied to the rotor's entire surface, including the cooling vanes, to help resist corrosion. RPT Rust Prevention Technology helps guard against rust.
