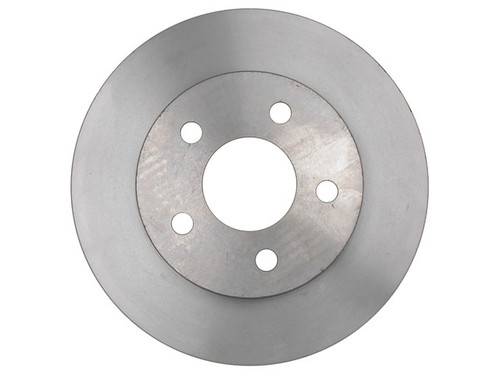

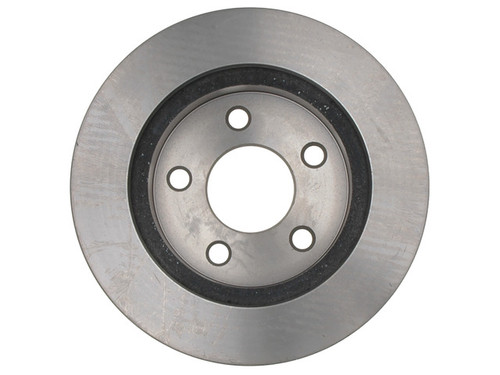

Bring smooth, quiet stops to the rear axle with the Raybestos R-Line Disc Brake Rotor 66335R. It installs as a direct-fit rear rotor for the 1993-1997 Ford Thunderbird, 1993-1998 Lincoln Mark VIII, and 1993-1997 Mercury Cougar (All engines).
This is a conventional, vented rear rotor with a 10.16 in (258.05 mm) outside diameter, 64.5 mm center hole, and 5-lug mounting on a 107.95 mm bolt circle; nominal thickness is 0.715 in (18.15 mm) with a 0.657 in (16.7 mm) discard thickness. The ABS tone ring is not included. Sold individually; order 2 to replace both sides of the rear axle together as a matched pair for even, balanced braking. Country of origin: China.
Manufacturer part number 66335R.
Which vehicles does the 66335R rotor fit?
It's a direct-fit rear rotor for the 1993-1997 Ford Thunderbird, 1993-1998 Lincoln Mark VIII, and 1993-1997 Mercury Cougar (All engines). Check the Buyer's Guide tab to confirm your vehicle.
Is this a front or rear rotor?
It's cataloged as a rear disc brake rotor for the listed applications.
Do I need one or two?
Rotors are sold individually. Replace both rear rotors together as a matched pair for even, balanced braking; order 2 for a complete rear-axle replacement.
What are the key dimensions?
10.16 in (258.05 mm) outside diameter, 64.5 mm center hole, and 5 lug holes on a 107.95 mm bolt circle, with 0.715 in nominal thickness and a 0.657 in discard thickness.
Is an ABS tone ring included?
No, the ABS tone ring is not included with this rotor.
WARNING: These products can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
