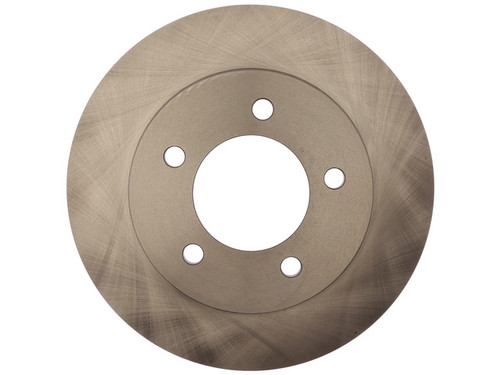

Smooth, quiet front-axle braking starts with the Raybestos R-Line Disc Brake Rotor 66943R. This vented, cast-iron front rotor is engineered for everyday driving and drops in as a direct-fit replacement for the 1999-2002 Ford Expedition [All] and 1998-2002 Lincoln Navigator [All].
OE fit, form, and function: Developed from OE samples and made with G3000-qualified material for dependable braking.
SAE tensile strength: Meets the SAE standard for tensile strength, providing structural integrity and a maximum service life.
Low lateral runout & thickness variation: Tight runout and thickness-variation parameters help reduce pedal pulsation and brake noise while extending pad life.
Mill-balanced & 100% validated: Mill-balanced edges and full validation help minimize thickness variation for less vibration and smoother stops.
Specifications: 12.12 in (307.85 mm) outside diameter, 30.1 mm nominal thickness with a 27.7 mm discard thickness, 3.64 in (92.45 mm) center hole, 5 stud/lug holes, and a 5-bolt mounting pattern on a 135 mm bolt circle. Non-directional braking surface, conventional vented design. ABS tone ring not included. Country of origin: China.
Sold individually; both listed applications call for two rotors — one per side. Replace both sides together as a matched pair for even, balanced braking. Manufacturer part number 66943R.
Frequently Asked Questions
What vehicles does this rotor fit?
It's a direct-fit front rotor for the 1999-2002 Ford Expedition [All] and 1998-2002 Lincoln Navigator [All]. Check the Buyer's Guide tab to confirm your vehicle.
Is this a front or rear rotor?
The catalog lists it as a front-axle rotor.
How many do I need?
Both listed applications call for two — one per side. It's sold individually, so order two and replace both sides together as a matched pair for balanced braking.
Is it a vented or solid rotor?
It's a vented, non-directional, conventional cast-iron rotor with a 12.12 in (307.85 mm) outside diameter.
Does it include an ABS tone ring?
No, an ABS tone ring is not included. Transfer or replace the original as directed by the vehicle's service procedure.
