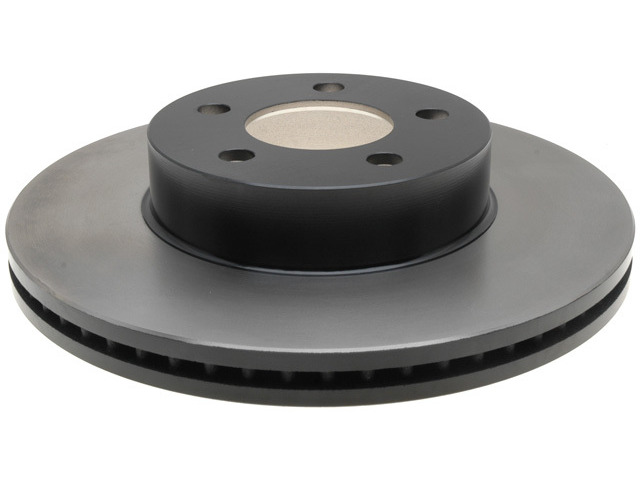

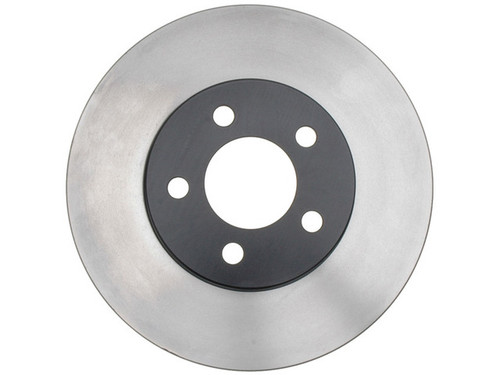

Restore smooth, dependable braking to your truck's front axle with the Raybestos Specialty Disc Brake Rotor 680027. This front disc brake rotor drops in as a direct-fit replacement for the 2002-2003 Ford Explorer, 2001-2003 Ford Explorer Sport, 2001-2005 Ford Explorer Sport Trac, 2003-2011 Ford Ranger, 2002 and 2005 Mazda B3000, and 2002-2010 Mazda B4000 (All engines).
This is a solid (non-vented), conventional cast-iron rotor with a non-directional smooth braking surface. It measures 12.01 in (305.05 mm) in outside diameter with a 2.84 in (72.15 mm) center hole and 5 mounting bolt holes on a 4.5 in (114.3 mm) bolt circle. Nominal thickness is 1.025 in (26.05 mm); machine or replace before reaching the 0.965 in (24.5 mm) discard thickness. An ABS tone ring is not included. Sold individually — the front axle uses two, so order 2 and replace both sides together as a matched pair for even, balanced braking. Country of origin: China. Manufacturer part number 680027.
Does this rotor fit the front or rear axle?
The catalog lists it as a FRONT disc brake rotor for the listed Ford Explorer, Explorer Sport, Explorer Sport Trac, Ranger, and Mazda B3000/B4000 applications.
Is this a solid or vented rotor?
It is a solid (non-vented), conventional cast-iron rotor with a 12.01 in (305.05 mm) outside diameter and 5 mounting bolt holes on a 4.5 in (114.3 mm) bolt circle.
How many rotors do I need?
Rotors are sold individually. The front axle uses two, so order 2 and replace both sides together as a matched pair for even, balanced braking.
What are the thickness specs?
Nominal thickness is 1.025 in (26.05 mm), and the discard thickness is 0.965 in (24.5 mm). Machine or replace the rotor before it wears to the discard spec.
What are signs this rotor may need replacing?
Common signs include brake pedal pulsation, steering-wheel vibration under braking, or visible scoring and grooves. Diagnose the cause before replacing, as other parts can produce similar symptoms.
