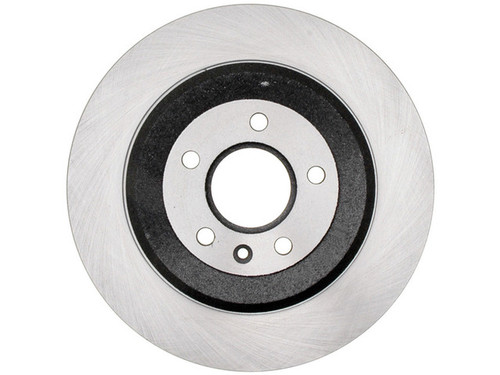

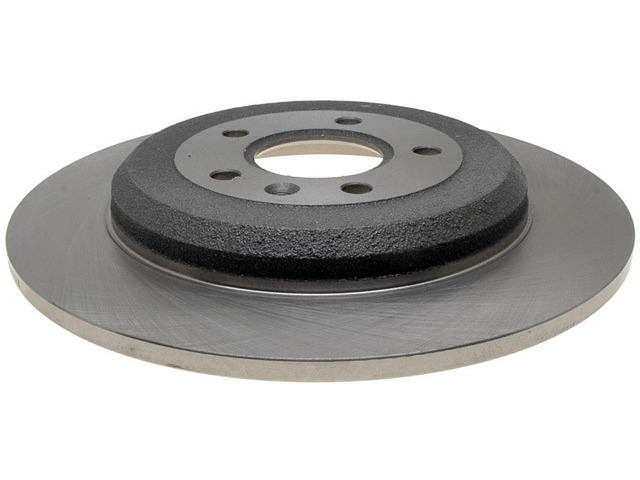

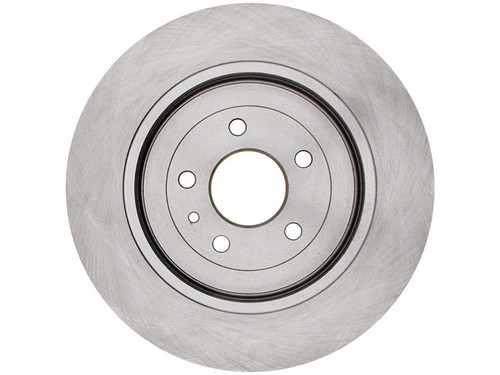

Raybestos Brakes Disc Brake Rotor P/N:680686R

Bring your rear brakes back to spec with the Raybestos R-Line Disc Brake Rotor 680686R, a direct-fit rear-axle replacement for the 2009-2019 Ford Flex, 2009-2019 Ford Taurus, 2009 Ford Taurus X, 2011-2014 Ford Edge, 2011-2019 Ford Explorer, 2009-2012 Lincoln MKS, 2010-2019 Lincoln MKT, 2011-2015 Lincoln MKX and 2009 Mercury Sable (all engines). See the Buyer's Guide tab for the full year-by-year list.

• OE fit, form and function: Developed from OE samples and made with G3000-qualified material for dependable braking.
• SAE tensile strength: Meets the SAE standard for tensile strength, providing structural integrity and a maximum service life.
• Low lateral runout & thickness variation: A small runout and thickness variation help reduce pedal pulsation and brake noise while supporting extended pad life.
• Mill-balanced edges: Mill balanced and 100% validated to minimize thickness variation, reduce vibration and promote smoother stopping.

This is a solid, full-cast iron rotor with a non-directional smooth surface. It measures 8.7 in (221 mm) outside diameter and 1.5 in (38.7 mm) overall height, with a 68 mm center hole, 5 lug holes, and 5 mounting bolt holes on a 4.5 in (114.3 mm) bolt circle. Nominal thickness is 10.9 mm with a discard thickness of 9.9 mm, and a rust-resistant coating is applied. No ABS tone ring and no wheel bearing are included. Country of origin: China. Sold individually; each application uses two, so replace both sides as a matched pair for even, balanced braking. Manufacturer part number 680686R.
