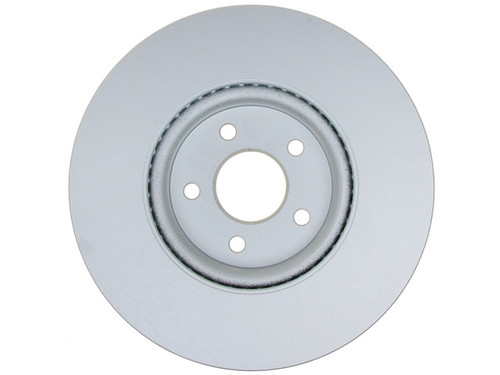

Bring smooth, quiet braking back to your front axle with the Raybestos Specialty Truck Coated Disc Brake Rotor (MPN 680998). This vented cast-iron front rotor is a direct-fit replacement for the listed 2004-2012 Volvo S40, 2005-2011 Volvo V50, 2006-2013 Volvo C70, 2013-2019 Ford Escape, 2013-2018 Ford Focus, 2014-2018 Ford Transit Connect, and 2018-2019 Lincoln MKC (All engines). Raybestos matches its cooling vanes and application-specific iron to OE fit, form, and function.
- Vented cooling vanes: matched to OE designs for optimal cooling, reduced fade, less noise, and increased pad life.
- Rust protection: comes fully coated with Grey Fusion 4.0 rated at 300 hours salt spray, or with a Black Fusion painted hat and edge.
- SAE-standard build: follows SAE standards for tensile strength, hardness, and iron grade for structural integrity.
- Turned finish: a smooth, non-directional braking surface engages the pads for an effective stop out of the box.
Specs: 320 mm (12.598 in) outside diameter, 25 mm nominal thickness, 23 mm discard thickness, 63.5 mm center hole, and 5 lug holes. If pedal pulsation, vibration under braking, or scoring on the old rotor is the cause, this replaces it. Sold individually; the listed applications use two per axle, so replace both front rotors as a matched pair for even, balanced braking. Manufacturer part number 680998. Country of origin: China.
Frequently Asked Questions
Does this rotor fit the front or rear?
It is a front disc brake rotor for the listed Ford, Lincoln, and Volvo applications. Check the Buyer's Guide tab to confirm your specific vehicle.
Is this a vented rotor?
Yes. It is a vented conventional rotor with cooling vanes that Raybestos matches to OE designs for optimal cooling, reduced fade, and less noise.
How is it protected against rust?
Every Specialty rotor comes fully coated with Grey Fusion 4.0 rated at 300 hours salt spray, or with a Black Fusion painted hat and edge for rust protection.
How many rotors come in this listing?
One rotor. The listed applications use two per axle, so order two to replace both front rotors together as a matched pair for balanced braking.
What are the key dimensions?
320 mm (12.598 in) outside diameter, 25 mm nominal thickness with a 23 mm discard thickness, a 63.5 mm center hole, and 5 lug holes. It is cast iron.
