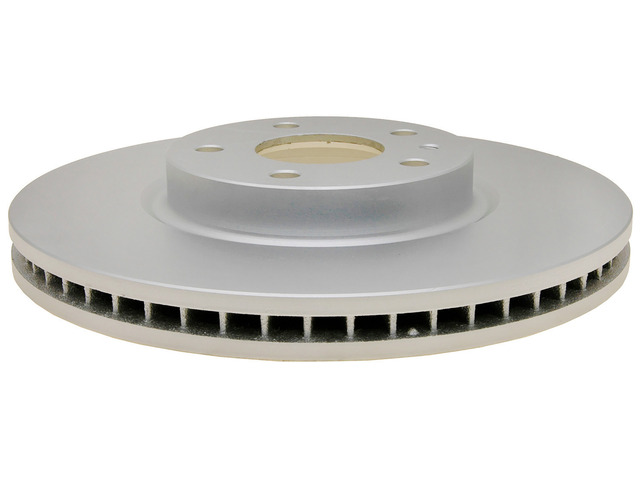

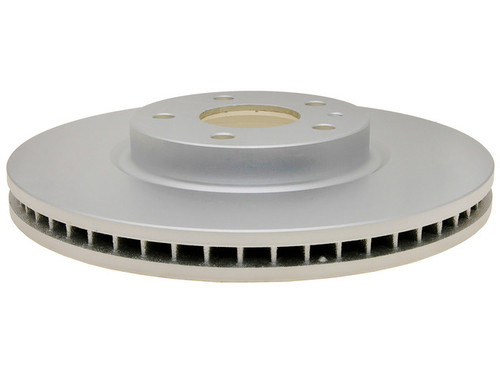

Deliver smooth, quiet braking to your Ford Fusion with the Raybestos Specialty Street Performance Coated Disc Brake Rotor 681014. This front disc brake rotor drops in as a direct-fit replacement for the 2013-2020 Ford Fusion [All] and 2013-2016 Lincoln MKZ [All].
Built from cast iron, this conventional vented rotor measures 300 mm (11.811 in) outside diameter with a 63.5 mm (2.5 in) center hole, five lug holes on a 108 mm (4.252 in) bolt circle, a 28.05 mm (1.104 in) nominal thickness, and a 26.5 mm (1.043 in) discard thickness. It does not include an ABS tone ring. Country of origin: China. Sold individually; for even, balanced braking, replace both front rotors as a matched pair (order 2). Manufacturer part number 681014.
Will this rotor fit my vehicle?
It's a front disc brake rotor for the 2013-2020 Ford Fusion [All] and 2013-2016 Lincoln MKZ [All]. Check the Buyer's Guide tab to confirm fitment for your vehicle.
Is this rotor vented or solid?
It's a vented, conventional rotor with cooling vanes that match OE configurations for optimal cooling and reduced brake fade.
What size is this rotor?
It has a 300 mm (11.811 in) outside diameter, a 63.5 mm (2.5 in) center hole, 5 lug holes on a 108 mm (4.252 in) bolt circle, 28.05 mm nominal thickness, and a 26.5 mm discard thickness.
Do I need to replace both rotors?
Rotors are sold individually. For even, balanced braking it's best to replace both front rotors as a matched pair, so order 2 for a complete axle set.
Does it include an ABS tone ring?
No. Per the catalog, this rotor does not include an ABS tone ring; transfer or replace any required hardware as directed by the vehicle service procedure.
