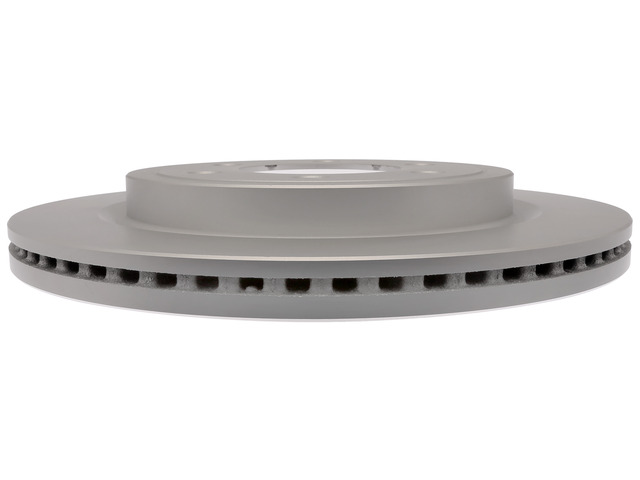

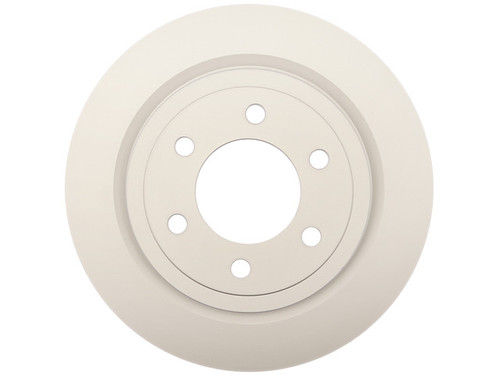

Bring quiet, confident braking back to your rig with the Raybestos Specialty Truck Coated Disc Brake Rotor 682263, a rear disc brake rotor that drops in for the 2018-2022 Ford Expedition [All], 2018-2020 Ford F-150 [All], and 2018-2023 Lincoln Navigator [All]. It's built for noise-prone truck and SUV braking, giving the pads a fresh, true friction surface to work against.
Key specs: 13.228 in (336 mm) outside diameter, 90.1 mm center hole, 24 mm nominal thickness, 22.5 mm (0.886 in) discard thickness, and 6 stud/lug holes. A wheel bearing and ABS tone ring are not included. Each listed application uses two rotors (one per side); this listing is for a single rotor, so replacing both rear rotors as a matched pair is recommended for even, balanced braking. Manufacturer part number 682263. Country of origin: China.
What vehicles does the 682263 rotor fit?
It's a rear disc brake rotor for the 2018-2022 Ford Expedition, 2018-2020 Ford F-150, and 2018-2023 Lincoln Navigator (all engines). Check the Buyer's Guide tab to confirm your vehicle.
Is this rotor vented or solid?
It's a vented, full-cast rotor made of cast iron, with cooling vanes matched to OE designs.
Does it include a wheel bearing or ABS tone ring?
No. Bearings and an ABS tone ring are not included; transfer or replace those parts as directed by the vehicle service procedure.
Should I replace both rear rotors at once?
Each listed application uses two rotors (one per side) and this listing is for a single rotor. Replacing both rear rotors as a matched pair is recommended for even, balanced braking.
How do I know when a rotor may need replacing?
Signs may include brake pedal pulsation or vibration, visible scoring or grooving, or thickness worn to the discard spec (0.886 in / 22.5 mm). Diagnose the cause before replacing.
