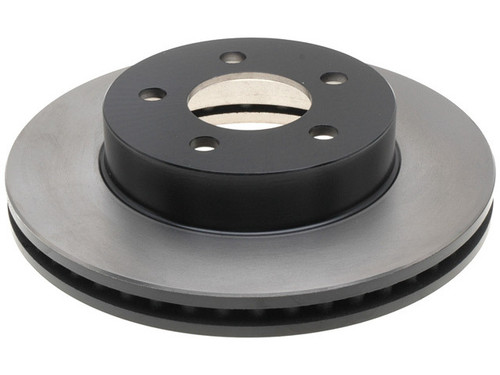

Planning a 2005 Jeep Liberty brake pads and rotors refresh? Start with the Raybestos Specialty Truck Disc Brake Rotor 780036, a vented cast iron front rotor from a Raybestos line built for noise-prone applications. It's a direct-fit replacement for the 2002-2007 Jeep Liberty (all engines), sold individually.
Raybestos Specialty rotors pair vehicle-specific cooling vane configurations with application-specific iron to help dampen noise, extend service life, and speed up brake jobs.
Specs: 11.345 in (288.15 mm) outside diameter, vented rotor, 5 lug holes on a 4.5 in (114.3 mm) bolt circle, non-directional braking surface, 1.024 in (26 mm) discard thickness. No ABS tone ring included. Country of origin: China. For even, balanced braking, replacing both front rotors together as a matched pair is recommended.
Will this fit my 2005 Jeep Liberty rotors?
Yes. The 780036 is a direct-fit front rotor for the 2002-2007 Jeep Liberty (all engines). Confirm your application in the Buyer's Guide tab.
Is this a front rotor, and how many do I need?
It's a front rotor sold individually. The listed applications use two, and replacing both sides together as a matched pair is recommended for even braking.
Is this rotor vented or solid?
It's a vented cast iron rotor with cooling vanes matched to the OE configuration to help with heat management and noise.
What is the discard thickness for this rotor?
The discard (minimum) thickness is 1.024 in (26 mm), with a nominal thickness of 1.1 in (27.95 mm). Measure and replace before it reaches the discard spec.
What does it cost to replace brakes and rotors?
The cost to replace brakes and rotors varies by shop and the parts you choose. This listing covers one front rotor; an ABS tone ring is not included.
