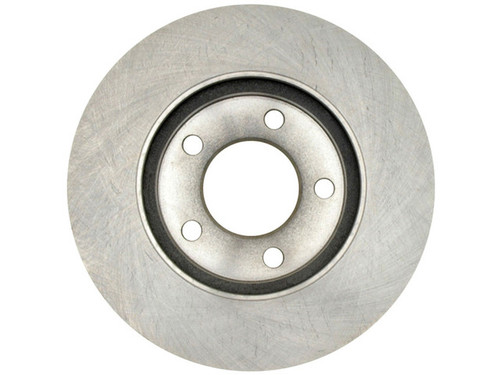

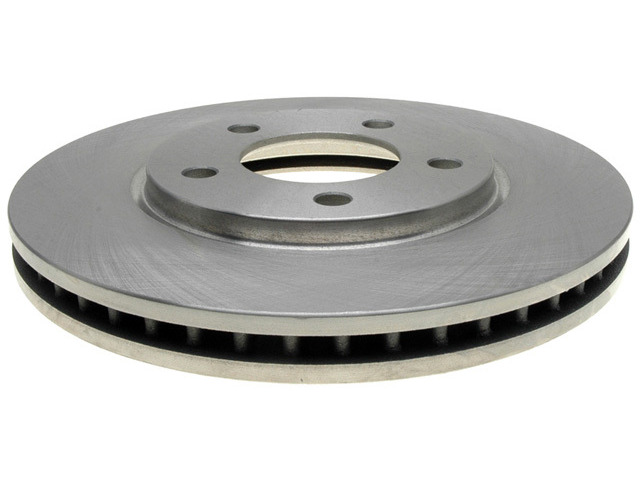

Bring your front brakes back to spec with the Raybestos R-Line Disc Brake Rotor 780049R. This vented front disc brake rotor drops in as a direct-fit replacement for the 2001-2007 Chrysler Town & Country, 2003 Chrysler Voyager, and 2001-2007 Dodge Caravan and Grand Caravan (All engines), giving worn or warped rotors a fresh, true-running friction surface.
Built from cast iron with a vented, conventional design and a non-directional braking surface. Specs: 11.06 in (280.9 mm) outside diameter, 5 stud/lug holes, 4.5 in (114.3 mm) bolt circle, 1.1 in (27.95 mm) nominal thickness, and a 0.996 in (25.3 mm) discard thickness. Sold individually; the listed applications use two per front axle, so replace both sides together as a matched set for even, balanced braking. Manufacturer part number 780049R. Country of origin: China.
Will this rotor fit my vehicle?
It is a direct-fit front rotor for the 2001-2007 Chrysler Town & Country, 2003 Chrysler Voyager, and 2001-2007 Dodge Caravan and Grand Caravan (All engines). Check the Buyer's Guide tab to confirm your vehicle.
Is this a front or rear rotor?
The catalog lists this as a front disc brake rotor for the applications shown.
How many rotors do I need?
It is sold individually. The listed applications use two per front axle, so it's best to replace both sides together as a matched set for even, balanced braking.
Is this rotor solid or vented?
It is a vented, conventional rotor with a non-directional braking surface.
What is the discard thickness?
The discard thickness is 0.996 in (25.3 mm), with a nominal thickness of 1.1 in (27.95 mm). If measurement shows the rotor is at or below the discard spec, it should be replaced.
