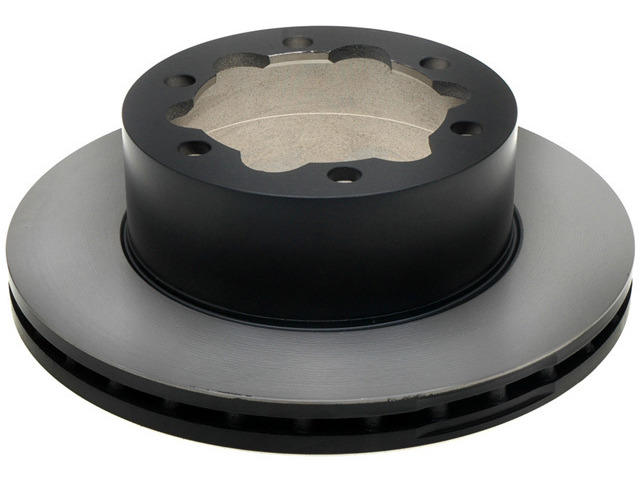

Engineered to damp brake noise on hard-working vans, the Raybestos Specialty Disc Brake Rotor 780612 is a rear disc brake rotor built for noise-prone truck, medium-duty, and air-disc applications. It drops in as a direct-fit replacement on the 2007-2009 Dodge Sprinter 3500, 2007-2020 Freightliner Sprinter 3500, 2008-2017 Volkswagen Crafter Van, 2010-2024 Mercedes-Benz Sprinter 3500, 2018-2024 Mercedes-Benz Sprinter 3500XD, 2019-2020 Freightliner Sprinter 2500, 2019-2020 Mercedes-Benz Sprinter 2500, and 2019-2023 Mercedes-Benz Sprinter 4500 (all engines).
This is a drum-in-hat rotor measuring 303 mm (11.929 in) outside diameter, with a nominal thickness of 27.95 mm (1.1 in) and a discard thickness of 24.9 mm (0.98 in). No ABS tone ring is included. The listed applications use two per axle, so replace both sides together as a matched pair for even, balanced braking; sold individually. Country of origin: China. Manufacturer part number 780612.
Is this a front or rear rotor?
It's a rear disc brake rotor cataloged for the listed Sprinter and Crafter applications.
How many rotors do I need?
The listed applications use two per axle. This rotor is sold individually, so order two and replace both sides together as a matched pair for even, balanced braking.
Does it include an ABS tone ring?
No. The ABS Tone Ring Included attribute is listed as No, so reuse or source a tone ring separately if your vehicle requires one.
What is a drum-in-hat rotor?
It's a disc brake rotor with an integrated drum in the hat section that houses a separate parking brake shoe assembly, common on vans and light trucks.
How is this rotor protected from rust?
New Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray, or a Black Fusion painted hat and edge for rust protection.
