Raybestos Brakes Disc Brake Rotor 782625R

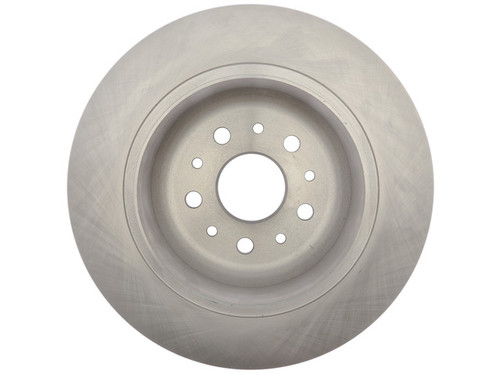

Raybestos Brakes Disc Brake Rotor 782625R - view 2

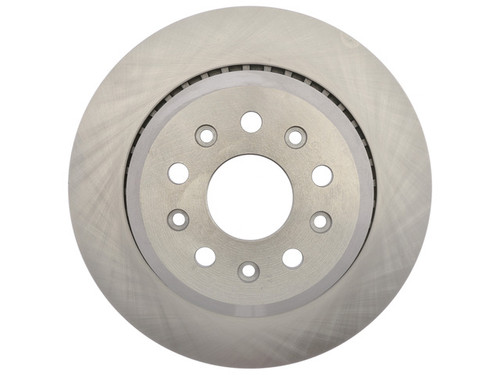

Raybestos Brakes Disc Brake Rotor 782625R - view 3

Raybestos Brakes Disc Brake Rotor P/N:782625R

Be the first to review this product

$57.99

MPN: 782625R

UPC: 887213358445

Item Package Quantity: 1

Current Stock:

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Raybestos Brakes Disc Brake Rotor P/N:782625R

$57.99

Description

Help keep every stop smooth and steady with this Raybestos R-Line rear Jeep Wrangler brake rotor, part number 782625R, a direct-fit replacement for the 2020-2025 Jeep Wrangler and the 2020-2025 Jeep Gladiator (engine: All). It was developed from OE samples for OE fit, form and function.

Raybestos engineers its R-Line rotors and drums for everyday driving conditions, with broad application coverage and a focus on dependability, safety and performance.

OE fit, form and function: Developed from OE samples and made with G3000-qualified material for dependable braking.
SAE standard: Meets the SAE standard for tensile strength, supporting structural integrity.
Low initial lateral runout and thickness variation: The small lateral runout and thickness variation are designed to reduce pedal pulsation and brake noise and to help extend pad life.
Mill-balanced edges: Mill balanced and 100 percent validated. This helps minimize thickness variation for reduced vibration and smoother stopping.

Specifications: Vented rear rotor with a smooth surface. It has a 350 mm (13.78 in) outside diameter, a 241.3 mm (9.5 in) inside diameter, a 22 mm (0.866 in) nominal thickness and a 20 mm (0.787 in) discard thickness. It has five 17.1 mm (0.673 in) lug holes on a 127 mm (5 in) bolt circle, a 72 mm (2.835 in) center hole and a 76.4 mm (3.008 in) overall height. ABS tone ring not included. Country of origin: China.

The listed applications use two rotors each. Each disc brake rotor is sold individually, so order two and replace both rear rotors together as a matched pair for even, balanced braking.

Interchange: 09.N375.31 · 120.67083 · 121.67083 · 1427-732818
YH707639P · 72221DG · 72221DL · 782625RGS · 68321343AB · 68321343AC · 68321348AB · 68321348AC · BR901796 · 41754 · 6622784 · 09N37531 · 12067083 · 12167083 · 1427732818

Manufacturer's Description

Product Specs

Buyer's Guide

Interchange Part Numbers

This part cross-references / interchanges with the following part numbers:

YH707639P, 72221DG, 72221DL, 782625RGS, 09.N375.31, 120.67083, 121.67083, 68321343AB, 68321343AC, 68321348AB, 68321348AC, BR901796, 41754, 1427-732818, 6622784

Frequently Asked Questions

Does this rotor fit the 2020-2025 Jeep Wrangler and Gladiator?

Yes. Raybestos 782625R is listed as a rear rotor for the 2020-2025 Jeep Wrangler and the 2020-2025 Jeep Gladiator (engine: All). The listed applications use two rotors each.

Is this rotor sold individually?

Yes, this listing is for one rotor. The listed applications use two, so replacing both rear rotors together as a matched pair is recommended for even, balanced braking.

What is the discard thickness of this rotor?

Nominal thickness is 22 mm (0.866 in) and discard thickness is 20 mm (0.787 in). A rotor worn to or below the discard thickness should be replaced.

Should I replace my Jeep Wrangler rotors and pads at the same time?

Installing fresh pads with new rotors is common practice so the friction surfaces bed in together. Brake pads are not included with this rotor.

What signs suggest a rear rotor may need replacing?

Common signs include pedal pulsation or vibration when braking, scoring on the braking surface, and wear at or below the 20 mm discard thickness. Inspect the brakes to confirm the cause before replacing parts.
