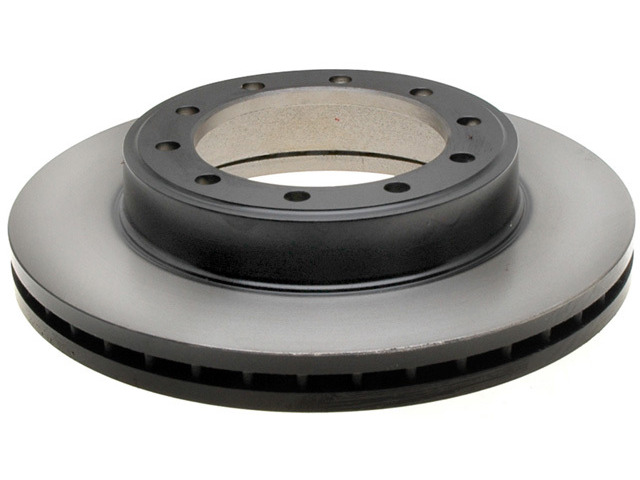

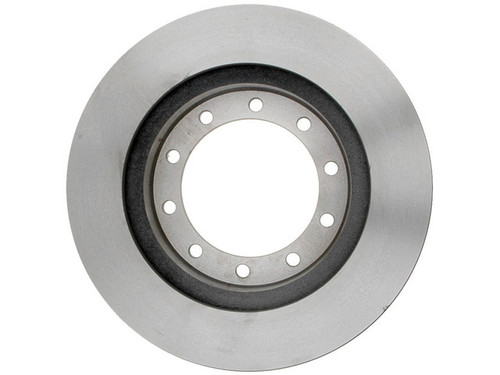

Quiet, dependable stopping for medium- and heavy-duty trucks starts with the Raybestos Specialty Truck Disc Brake Rotor 8532. It drops in as a direct-fit replacement across a wide range of International and Sterling Truck applications — including the 1990-2005 International 4700, 2002-2009 International 4300, and 2001-2006 Sterling Truck Acterra 6500 — with the catalog listing it in both front and rear positions (see the Buyer's Guide tab for the full list).
This is a conventional, vented rotor built for noise-prone truck braking, with a 15 in (381 mm) outside diameter, a 6.003 in (152.5 mm) center hole, ten mounting bolt holes on a 7.25 in (184.15 mm) bolt circle, a 1.435 in nominal thickness, and a 1.32 in (33.55 mm) discard thickness.
Listed applications use two rotors; this listing is for one. Replace both sides on an axle together as a matched set for even, balanced braking. Country of origin: China.
Interchange: YH145086 · 89-54012 · 8954012 · 5609 · 5609DG · AR9312 · 145086 · 8532RGS · 120.83012 · 121.83012 · RB740 · BR5609 · FLT170014951 · FLT1700149S1 · E12588017 · D6153 · 2007173C1 · PFH38108120 · 381.081.20 · PS125484 · BD125484 · 6620555 · Manufacturer part number 8532.
This part cross-references / interchanges with the following part numbers:
Is this a front or rear rotor?
The catalog lists part 8532 in both front and rear positions across the covered International and Sterling Truck applications. Check the Buyer's Guide tab to confirm the position for your truck.
Is this a vented rotor?
Yes. It's a conventional, vented rotor whose cooling vanes are matched to OE designs to help with cooling, reduced fade, less noise, and increased pad life.
What are the key dimensions?
15 in (381 mm) outside diameter, 6.003 in (152.5 mm) center hole, ten bolt holes on a 7.25 in circle, 1.435 in nominal thickness, and a 1.32 in (33.55 mm) discard thickness.
How many rotors do I need?
Listed applications use two rotors. This listing is for one, so order two to do a full axle and replace both sides together as a matched set for even, balanced braking.
What vehicles does it fit?
It's a direct-fit replacement for many International trucks (1452SC, 1652SC, 4100-4900, 7100, M1400 Metro II) and 2001-2006 Sterling Truck Acterra 6500/7500. See the Buyer's Guide tab for the full list.
