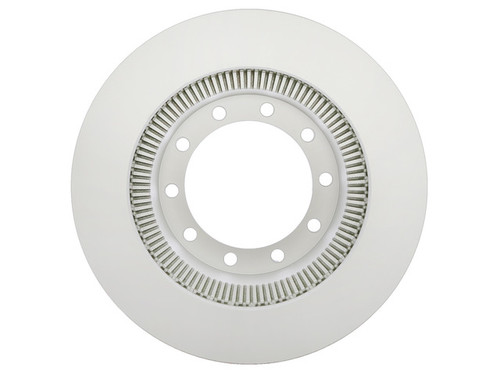

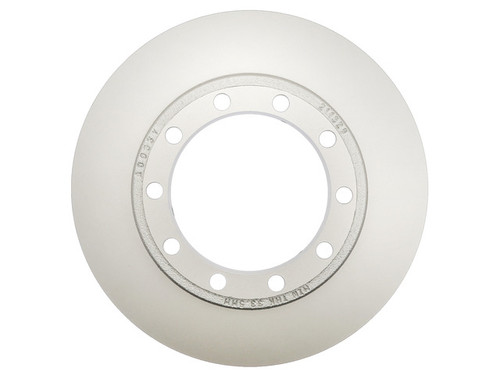

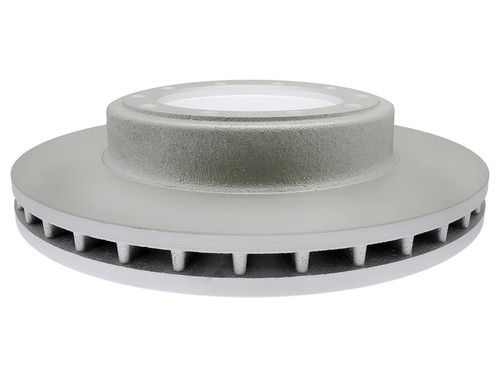

Raybestos Brakes Disc Brake Rotor P/N:55996
Tame brake noise on hard-working trucks and coaches with the Raybestos Specialty Disc Brake Rotor 8537, a vented cast-iron rotor built for noise-prone truck, medium-duty, and air-disc applications. It drops in as a direct-fit replacement across a wide range of chassis, including the 1989-2004 Blue Bird TC2000, 1992-1995 Freightliner MB60 and MB70, 1993-2003 Blue Bird SHL TC2000, 1995-2022 Freightliner MB Line, and 1996-2008 Freightliner FS65 (engine: All) — see the Buyer's Guide tab for the full list of 192 applications. The catalog lists this rotor for both front and rear positions.
Built to SAE standards for tensile strength, hardness, and iron grade, it is a full-cast cast-iron rotor with a 15 in (381 mm) outside diameter, 10 lug holes, and an included ABS tone ring; wheel bearings are not included. If worn or warped rotors are causing pulsation or brake noise, this replaces them. Listed applications use two per axle; sold individually, so order the quantity your job needs and replace both sides together as a matched set for balanced braking. Country of origin: China. Manufacturer part number 8537.
Does this rotor include an ABS tone ring?
Yes. The catalog lists this rotor with an ABS tone ring included. Wheel bearings are not included, so transfer or source them as the service procedure directs.
Does it fit the front or rear axle?
The catalog lists this rotor for both front and rear positions. Confirm the exact application for your vehicle using the Buyer's Guide tab.
What is the rotor size?
It has a 15 in (381 mm) outside diameter, 10 lug holes, and 10 mounting bolt holes on a 7.25 in (184.15 mm) bolt circle.
How many should I order?
The listed applications use two per axle. It is sold individually, so order the quantity your job requires and replace both sides together as a matched set for even braking.
What is the discard thickness?
Nominal thickness is 1.44 in (36.6 mm) and the discard (minimum) thickness is 1.32 in (33.55 mm). Replace the rotor once it reaches that limit.
