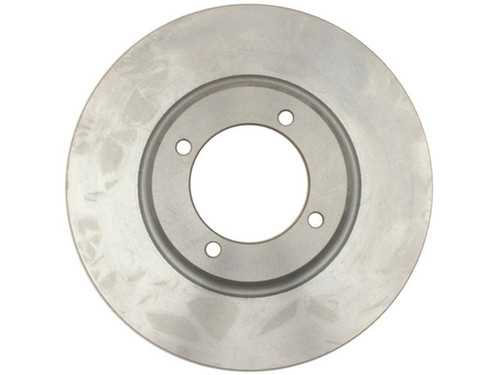

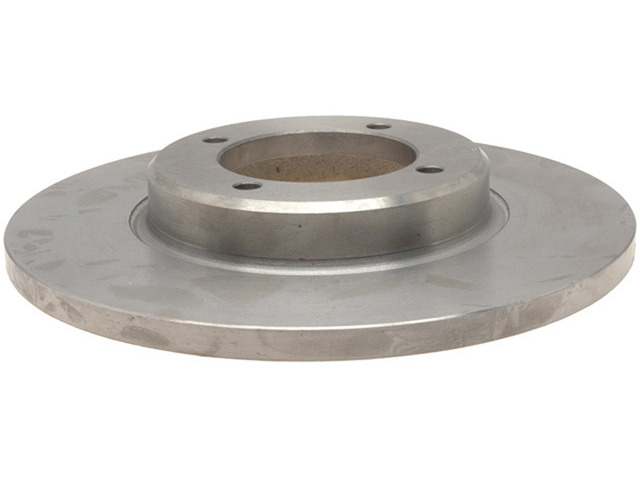

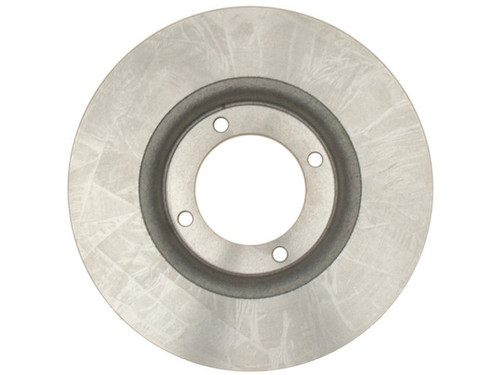

Smooth, quiet stopping for your classic mini-truck starts with the Raybestos R-Line Disc Brake Rotor 9260R — a front, solid conventional disc brake rotor that installs as a direct-fit replacement for the 1974-1977 Mazda Rotary Pickup, 1977-1982 Ford Courier, 1977-1978 Mazda B1800, and 1979-1984 Mazda B2000 (all engines). R-Line rotors are engineered for everyday driving.
Key specs: 10.08 in (256.05 mm) outside diameter, 0.472 in (12 mm) nominal thickness, 0.433 in (11 mm) discard thickness, 4 mounting bolt holes and 4 stud holes, and a 3.152 in (80.05 mm) center hole. An ABS tone ring is not included. Country of origin: China. If worn, warped, or below the discard thickness, this rotor replaces the original.
Sold individually; the listed applications use two, so order 2 and replace both sides as a matched pair for even, balanced braking.
Manufacturer part number 9260R.
Which vehicles does the 9260R fit?
It's a direct-fit front rotor for the 1974-1977 Mazda Rotary Pickup, 1977-1982 Ford Courier, 1977-1978 Mazda B1800, and 1979-1984 Mazda B2000 (all engines). See the Buyer's Guide tab.
Is this a front or rear rotor?
The catalog lists 9260R as a front rotor. It is a solid, conventional (non-vented) disc brake rotor with a 10.08 in (256.05 mm) outside diameter.
How many rotors should I order?
Rotors are sold individually, and the listed applications use two. Replace both sides as a matched pair for even, balanced braking.
Is an ABS tone ring included?
No. Per the catalog, this rotor does not include an ABS tone ring.
What are the thickness specs?
Nominal thickness is 0.472 in (12 mm) and the minimum discard thickness is 0.433 in (11 mm). Replace the rotor once it reaches the discard thickness.
