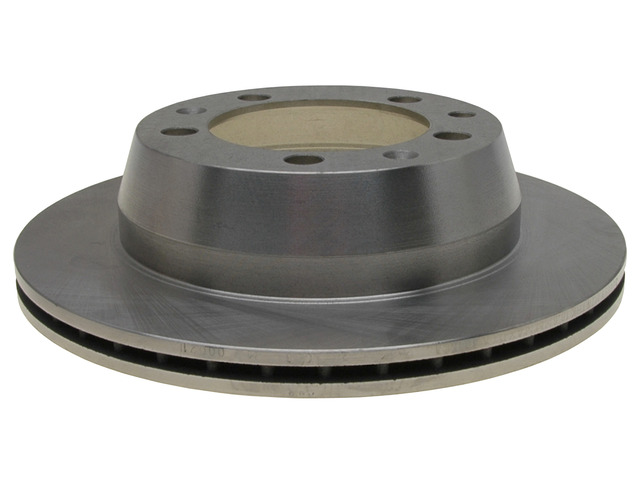

Keep your rear brakes stopping smoothly and quietly with the Raybestos R-Line Disc Brake Rotor 96274R, a direct-fit rear rotor for the 1977-1982 and 1987-1988 Porsche 924, 1978-1986 Porsche 928, and 1983-1986 Porsche 944 (All engines). Engineered for everyday driving conditions, this vented, conventional rotor is developed from OE samples and made with G3000-qualified material for OE fit, form, and function.
Specifications: 11.37 in (288.8 mm) outside diameter, 0.785 in (19.95 mm) nominal thickness, 0.732 in (18.6 mm) discard thickness, 2.8 in (71.1 mm) overall height, and 5 mounting bolt holes on a 5.118 in (130 mm) bolt circle with a 4.056 in (103 mm) center hole. ABS tone ring not included. Country of origin: China.
Sold individually; the listed applications use two, so order 2 and replace both sides as a matched pair for even, balanced braking.
Interchange: Manufacturer part number 96274R.
Does this rotor fit my Porsche?
It's a direct-fit rear rotor for the 1977-1982 and 1987-1988 Porsche 924, 1978-1986 Porsche 928, and 1983-1986 Porsche 944 (All engines). Check the Buyer's Guide tab to confirm.
Is this a front or rear rotor?
It is cataloged as a rear disc brake rotor.
How many do I need?
It is sold individually. The listed applications use two, so order 2 and replace both sides as a matched pair for even, balanced braking.
Is this a vented or solid rotor?
It is a vented, conventional rotor with internal cooling vanes.
Does it include an ABS tone ring?
No, an ABS tone ring is not included with this rotor.
