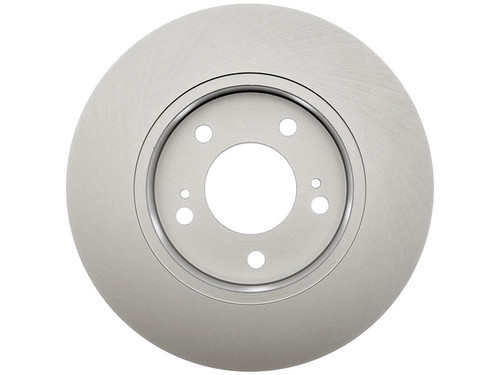

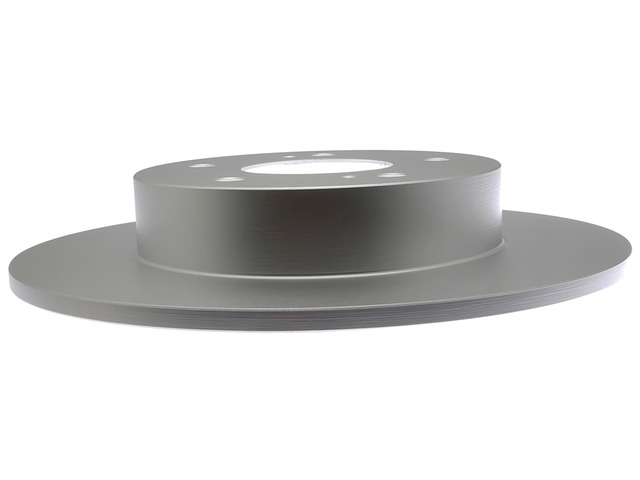

Help your rear brakes resist rust with the Raybestos Element3 Coated Brake Rotor 96511FZN, a direct-fit rear 1994-2003 Nissan Maxima brake rotor that also fits the 1996-2001 Infiniti I30 and 2002-2004 Infiniti I35 (all engines). This vented cast iron disc brake rotor gives the pads a friction surface to clamp against, converting wheel rotation into heat to slow the vehicle.
- Grey Fusion 4.0® coating: Raybestos's proprietary finishing process coats the rotor's entire surface, including the cooling vanes. The coating helps resist corrosion and delay rust-related performance issues, and Raybestos says it makes brake jobs faster.
- RPT® Rust Prevention Technology: Provides rust-prevention protection.
- Coated cooling vanes: The vanes are coated to help keep them clear of rust and corrosion for airflow and cooling.
- OE matched, non-directional finish: Built to OE-matched precision. The non-directional ground finish means the rotor is ready to install out of the box.
Specifications: 10.94 in (277.9 mm) outside diameter, 9 mm (0.355 in) nominal thickness, 8 mm (0.315 in) discard thickness, 1.755 in (44.6 mm) overall height, 5 lug holes on a 4.5 in (114.3 mm) bolt circle, 12.65 mm (0.499 in) mounting bolt holes and a 2.69 in (68.35 mm) center hole. It is a conventional rotor, not drum-in-hat, and no ABS tone ring is included.
Each rotor is sold individually, and this listing is for one. The listed applications use two, so replacing both rear rotors together as a matched pair is recommended for even, balanced braking. Country of origin: China.
Frequently Asked Questions
Will this rotor fit my 1994-2003 Nissan Maxima?
It is a rear rotor for the 1994-2003 Nissan Maxima. It also fits the 1996-2001 Infiniti I30 and 2002-2004 Infiniti I35. Check the "Vehicles it fits" section to confirm your vehicle.
What does the Grey Fusion 4.0 coating do?
Raybestos applies it to the rotor's entire surface, cooling vanes included, to help resist corrosion and delay rust-related performance issues. Raybestos also says it allows faster brake jobs.
What are the rotor's key dimensions?
It measures 10.94 in (277.9 mm) across, with a 9 mm (0.355 in) nominal thickness and 8 mm (0.315 in) discard thickness. It has a 5-lug, 4.5 in (114.3 mm) bolt circle and a 2.69 in (68.35 mm) center hole.
Should I replace both rear rotors at once?
Each rotor is sold individually, and the listed applications use two. Replacing both rear rotors together as a matched pair is recommended for even, balanced braking.
What are signs a brake rotor may need replacing?
Common signs include a pulsing pedal, vibration when braking, deep scoring, or wear down to the 0.315 in (8 mm) discard thickness. Inspect the brakes first, because other parts can cause similar symptoms.
