Rear Brake Rotor for 2010-2016 Land Rover LR4 & More - Raybestos 980345

$146.99
Raybestos Brakes Disc Brake Rotor 980345
Raybestos Brakes Disc Brake Rotor 980345

Vehicles this part fits
    Part number: 980345
    UPC: 829352294048
    Condition: New
    Weight: 19.69 LBS
    Item Package Quantity: 1
    $146.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    Raybestos Brakes Disc Brake Rotor P/N:980345
    Raybestos Brakes Disc Brake Rotor P/N:980345
    $146.99
    $146.99

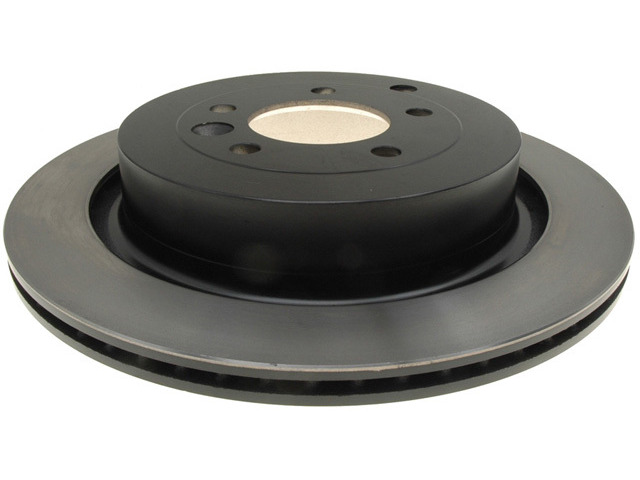

    Raybestos 980345 rear brake rotor for the 2010-2016 Land Rover LR4 and other vehicles gives the pads a vented disc to clamp against. It is one of the Raybestos rotors made for noise-prone applications.

    • Raybestos Specialty line, covering truck, medium-duty and air-disc applications
    • Vehicle-specific cooling vane configuration and application-specific iron to damp noise, improve service life and speed up brake jobs
    • Fully coated with Grey Fusion 4.0 rated at 300 hrs. salt spray, or a Black Fusion painted hat and edge
    • Follows SAE standards for tensile strength, hardness and iron grade
    • Turned finish gives the pads a surface to engage for a smooth stop out of the box

    Quick facts

    • Part: Raybestos 980345 brake rotor
    • Also called: disc brake rotor
    • Fits: 2010-2016 Land Rover LR4 and other vehicles
    • Position: Rear
    • Condition: New

    A pulsing brake pedal, grooves or scoring on the rotor face, or brake noise can mean a rotor is worn. Sticking calipers and worn pads can be behind the same signs, so find the cause before buying. This listing is one rear rotor; both rear sides are normally replaced together.

    Fits

    The vehicle-specific design matches OE fit, form and function. It fits the 2010-2016 Land Rover LR4, the 2006-2013 Land Rover Range Rover Sport and the 2005-2009 Land Rover LR3, and the rear axle takes two.

    Specifications

    Fit and size

    • Position: Rear
    • Quantity per vehicle: 2
    • Outside diameter: 350 mm (13.78 in)
    • Center hole diameter: 79 mm (3.11 in)
    • Bolt circle: 120 mm (4.724 in), 5 lug holes
    • Mounting bolt hole diameter: 15 mm (0.591 in)
    • Overall height: 59 mm (2.323 in)
    • Nominal thickness: 20 mm (0.787 in)
    • Discard thickness: 17 mm (0.669 in)

    Build and materials

    • Type: vented, drum-in-hat
    • Surface: turned finish
    • Coating: Grey Fusion 4.0 rated at 300 hrs. salt spray, or Black Fusion painted hat and edge
    • ABS tone ring: not included
    • Condition: New
    • Country of origin: China

    Frequently Asked Questions

    Does the Raybestos 980345 fit the 2010-2016 Land Rover LR4?

    Yes. Raybestos 980345 is a rear brake rotor for the 2010-2016 Land Rover LR4, and the rear axle takes two. This listing is one rotor.

    Does this listing include Raybestos brake pads and rotors?

    No. This listing is one rear brake rotor, and brake pads are sold separately. The ABS tone ring is not included either.

    Are Raybestos coated rotors like this one protected against rust?

    Yes. Specialty rotors come fully coated with Grey Fusion 4.0 rated at 300 hrs. salt spray, or with a Black Fusion painted hat and edge for rust protection.

    Is Raybestos 980345 sold as one of the Raybestos performance rotors?

    Raybestos 980345 is a Raybestos Specialty rotor, made for noise-prone applications including truck. Its vehicle-specific design matches OE fit, form and function.

    Is this disc brake rotor vented or solid?

    This rear brake rotor is vented. It is a drum-in-hat type with a 350 mm outside diameter and a 79 mm center hole.
