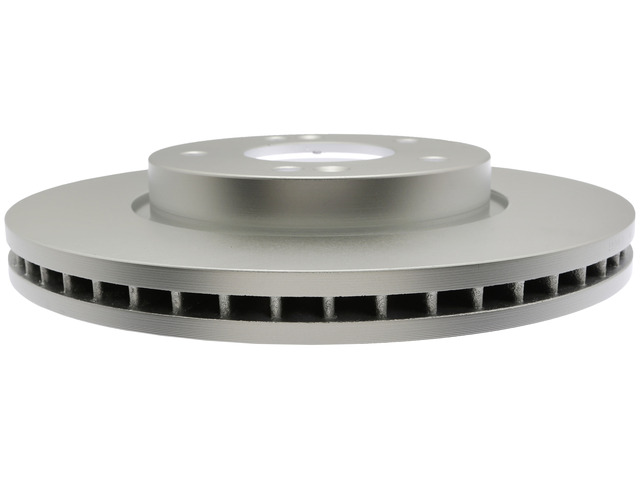

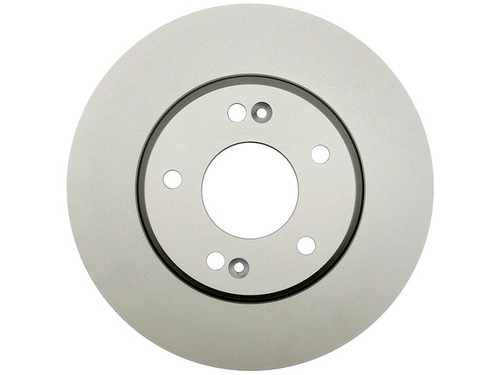

Get a front rotor built to help resist rust with the Raybestos Element3 Coated Brake Rotor, part number 980419FZN. It is a vented, cast iron disc brake rotor coated over its entire surface, cooling vanes included. It fits many vehicles, among them the 2009-2012 Hyundai Elantra, 2005-2010 Hyundai Sonata and 2006-2010 Kia Optima. It is a direct-fit replacement for the listed applications; see the Buyer's Guide tab for the full list.
Raybestos coats each Element3 rotor using a proprietary finishing technology. The full Grey Fusion 4.0 coating is designed to help resist corrosion and help delay rust-related performance issues, and the rotor is engineered for harsh weather conditions.
Specifications: cast iron, conventional vented rotor. Outside diameter is 11.027 in (280.1 mm), nominal thickness is 1.027 in (26.1 mm) and discard thickness is 0.961 in (24.4 mm). Overall height is 1.87 in (47.5 mm). It has five lug holes of 0.495 in (12.55 mm) on a 4.5 in (114.3 mm) bolt circle. Country of origin: China.
The listed applications use two rotors. This listing is for one rotor, and replacing both sides together as a matched pair is recommended for even, balanced braking.
Interchange: 09.B551.10 · 1427-731797
09B55110 · 1427731797 · 31423 · 31423DG · 70102 · PRT5831 · 28010832 · 980419 · 980419R · 980419RGS · BR31423 · 517122L000 · 517123K000 · 517122G000 · 517123K010 · 31427 · DF4283 · TN980419GEO · 2031427 · BD126553 · 6620517
This part cross-references / interchanges with the following part numbers:
Do these Hyundai Elantra rotors fit the 2009-2012 models?
Yes. The 980419FZN is listed as a front brake rotor for the 2009-2012 Hyundai Elantra. The Buyer's Guide tab shows every listed application.
Is this Kia Optima brake rotor also listed for the Hyundai Sonata?
Yes. It is listed as a front rotor for the 2006-2010 Kia Optima and the 2005-2010 Hyundai Sonata.
What does the Element3 coating do?
The full Grey Fusion 4.0 coating covers the rotor's entire surface, including the cooling vanes. It is designed to help resist corrosion and help delay rust-related performance issues.
Do I need to buy two rotors?
This listing is for one rotor. The listed applications use two, and replacing both sides together is recommended for even, balanced braking.
What are signs a brake rotor may need replacing?
Common signs include a pulsating pedal, vibration when braking, and scoring or grooves on the braking surface. A rotor worn below its 0.961 in (24.4 mm) discard thickness should be replaced.
