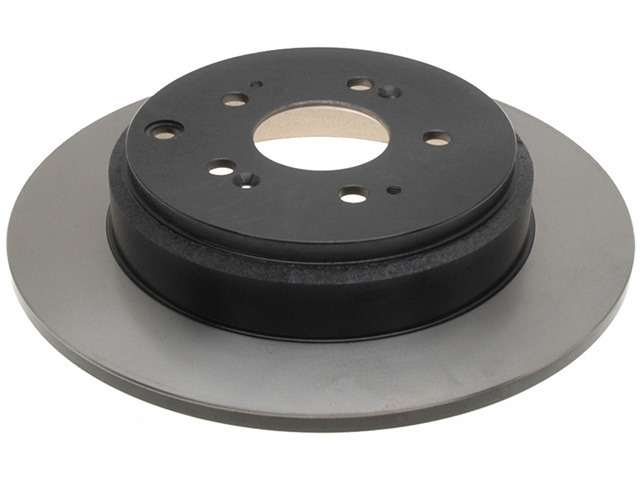

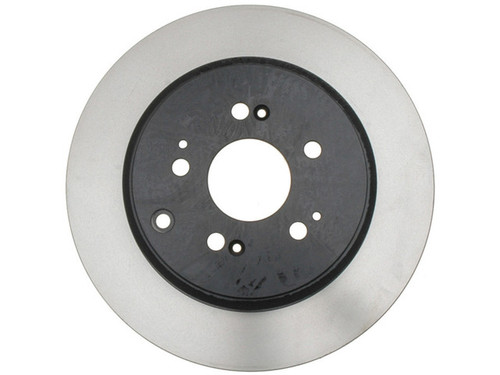

Keep your rear brakes quiet and true with the Raybestos Specialty Disc Brake Rotor 980567, a direct-fit rear replacement engineered to match OE fit, form, and function on the 2007-2013 Acura MDX (All), 2010-2013 Acura ZDX (All), 2011-2017 Honda Odyssey (All), and 2009-2015 Honda Pilot (All). Part of Raybestos' Specialty line for noise-prone truck and passenger applications, it uses application-specific cast iron to help dampen brake noise and support long service life.
Specs: cast iron; 13.142 in (333.8 mm) outside diameter; 5 lug holes on a 4.72 in (119.9 mm) bolt circle; 70.1 mm center bore; nominal thickness 0.433 in (11 mm); discard thickness 0.354 in (9 mm). ABS tone ring not included. Country of origin: China.
Interchange: Manufacturer part number 980567.
Does this rotor fit the front or rear?
It is cataloged as a rear disc brake rotor for the listed Acura MDX, Acura ZDX, Honda Odyssey, and Honda Pilot applications.
Is this a solid or vented rotor?
It's a solid (non-vented), drum-in-hat rotor with a nominal thickness of 0.433 in (11 mm) and a discard thickness of 0.354 in (9 mm).
How many rotors do I need?
Sold individually. The listed applications use two per axle, so order 2 and replace both rear sides together as a matched pair for even, balanced braking.
Does it include an ABS tone ring?
No. Per the catalog, the ABS tone ring is not included with this rotor.
What are the key dimensions?
13.142 in (333.8 mm) outside diameter, 5 lug holes on a 4.72 in (119.9 mm) bolt circle, and a 70.1 mm (2.76 in) center bore.
