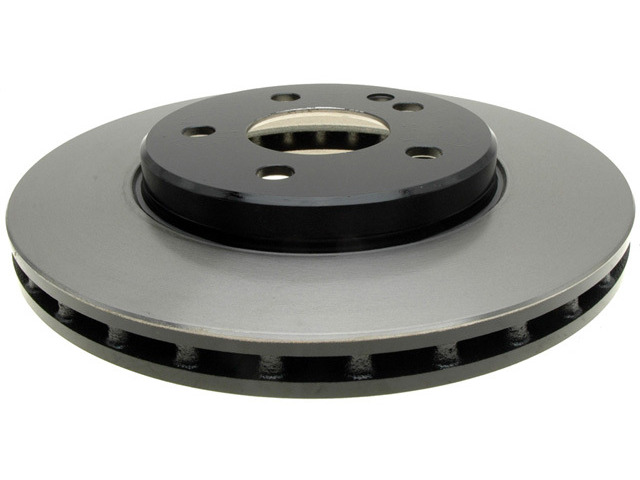

Help bring smooth, quiet stopping power back to your Mercedes-Benz with the Raybestos Specialty Street Performance Disc Brake Rotor 980668. This front brake rotor drops in as a direct-fit replacement for the 2006-2011 Mercedes-Benz B200, part of the Raybestos Performance Rotor line built for serious street drivers.
- Enhanced Iron: Application-specific enhanced iron suppresses noise and helps keep brakes running cool, quiet and vibration free.
- Cooling Vanes: The internal cooling vanes match OE configurations to provide optimal cooling and reduced fade.
- Application-Specific Coating: Depending on the application, the rotor carries a black fusion coating on the hat, a Grey Fusion 4.0 coating on the entire rotor, or a black fusion coating on the hat with Grey Fusion 4.0 on the inboard surface and cooling vanes.
- Turned Finish: A turned finish minimizes noise and improves responsiveness for smoother stops; some applications also feature a patented S-Groove Slot.
Specs: 11.346 in (288.2 mm) outside diameter, 67 mm center hole, 112 mm mounting bolt-hole circle, 0.98 in (24.9 mm) nominal thickness, and a 0.88 in (22.35 mm) discard thickness. The ABS tone ring is not included. Sold individually, and this listing is for one; the listed application uses two, and replacing both sides together as a matched pair is recommended for even, balanced braking. Country of origin: China.
Interchange: 09.8681.11 · 120.35114 · 121.35114 · 125.35114 · 125.35114CRY · 126.35114CSL · 126.35114CSR · 126.35114SL · 126.35114SR · 127.35114L · 127.35114R
09868111 · 12035114 · 12135114 · 12535114 · 12535114CRY · 12635114CSL · 12635114CSR · 12635114SL · 12635114SR · 12735114L · 12735114R · 980668R · 980668RGS · BR34397 · 1694210212 · 34397 · 45681 · 4454 · 6620196
This part cross-references / interchanges with the following part numbers:
980668, 980668R, 980668RGS, 09.8681.11, 120.35114, 121.35114, 125.35114, 125.35114CRY, 126.35114CSL, 126.35114CSR, 126.35114SL, 126.35114SR, 127.35114L, 127.35114R, BR34397, 1694210212, 34397, 45681, 4454, 6620196
Frequently Asked Questions
Will this rotor fit my vehicle?
It's a direct-fit replacement for the 2006-2011 Mercedes-Benz B200. See the "Vehicles it fits" section for full fitment details.
Is this a front or rear rotor?
This is a front brake rotor.
How many rotors do I need?
It's sold individually. The listed application uses two, and replacing both sides together as a matched pair is recommended for even, balanced braking.
Is the ABS tone ring included?
No. The ABS tone ring is not included with this rotor; follow the vehicle service procedure for the tone ring.
What are the rotor's key dimensions?
It has an 11.346 in (288.2 mm) outside diameter, 67 mm center hole, 112 mm mounting bolt-hole circle, 0.98 in nominal thickness, and a 0.88 in discard thickness.
