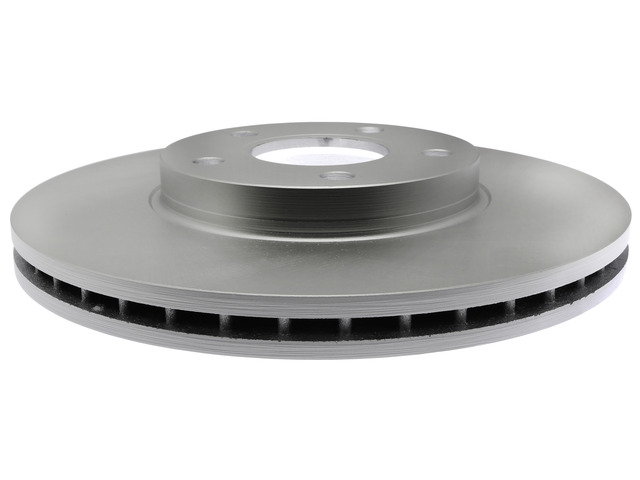

Keep the front brakes on your RAV4 biting clean and quiet with the Raybestos Element3 Coated Disc Brake Rotor 980781FZN. It drops in as a direct-fit front rotor for the 2009-2018 Toyota RAV4 (All engines), giving the pads a fresh cast-iron friction surface to clamp as they convert the wheel's motion into heat.
Grey Fusion 4.0 Coating: a proprietary finish coats the rotor's entire surface, including the cooling vanes, to help resist corrosion.
RPT Rust Prevention Technology: works with the coating to help guard against rust.
Vented design: internal cooling vanes route airflow through the rotor for heat dissipation during braking.
Non-directional ground finish: OE-matched and ready to install right out of the box.
Part specs: 11.655 in (296.05 mm) outside diameter, 5 lug holes on a 4.5 in (114.3 mm) bolt circle, 2.44 in (62 mm) center hole, and a 0.984 in (25 mm) discard thickness. Vibration or pulsation through the pedal, squealing, or reduced braking can be signs the front rotors may need replacing. Country of origin: China.
Interchange: AX900360 · AX900360P · 50011503 · 980781 · 980781R · 980781RGS · BR31551 · 31551 · TN980781GEO · 435120R020 · 6621038. Manufacturer part number 980781FZN.
This part cross-references / interchanges with the following part numbers:
Will this rotor fit my vehicle?
It is a direct-fit front rotor for the 2009-2018 Toyota RAV4 (All engines). Check the Buyer's Guide tab to confirm your specific vehicle.
Is this a vented or solid rotor?
It is a vented cast-iron rotor with internal cooling vanes that route airflow through the rotor to help dissipate heat during braking.
How many rotors do I need?
Rotors are sold individually. The RAV4 uses two up front, so order 2 and replace both sides together as a matched pair for even, balanced braking.
What is the Grey Fusion 4.0 coating?
It is a proprietary finish that coats the rotor's entire surface, including the cooling vanes, to help resist corrosion and rust.
What are the key dimensions?
Outside diameter 11.655 in (296.05 mm), 5 lug holes on a 4.5 in (114.3 mm) bolt circle, 2.44 in (62 mm) center hole, and a 0.984 in (25 mm) discard thickness.
