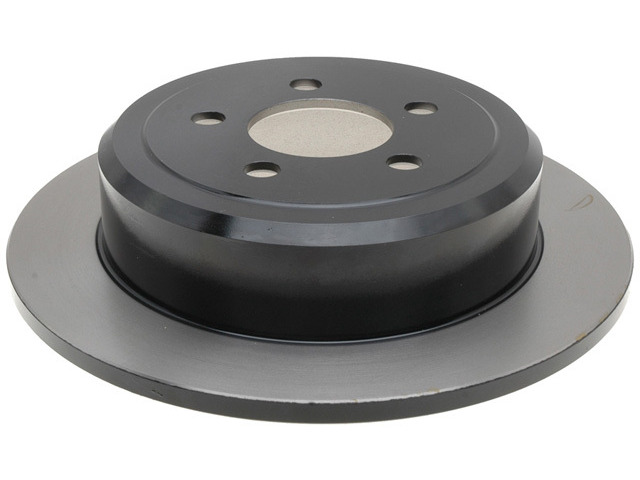

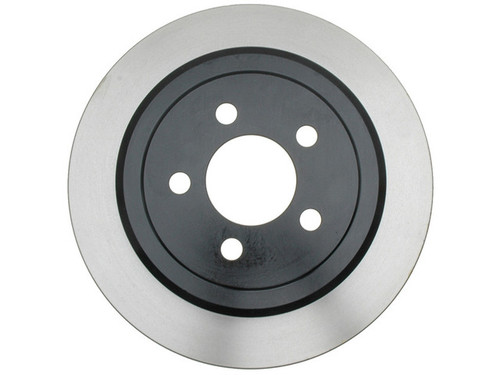

Give your rear brake pads a smooth, even surface to engage with the Raybestos Specialty Truck Brake Rotor, part number 780542. It is a direct-fit rear replacement for the 2008-2012 Jeep Liberty and 2007-2011 Dodge Nitro with all engines. This solid, drum-in-hat disc brake rotor is made of cast iron, and its hat also serves as the drum surface for the parking brake shoes.
Raybestos builds its Specialty line for noise-prone truck and medium-duty applications. It combines a vehicle-specific design with application-specific iron, which is intended to help damp noise, extend service life and make brake jobs quicker.
- OE fit, form and function: The vehicle-specific design is made to match the original rotor's fit, form and function.
- Rust protection: Specialty rotors are protected against the elements in one of two ways. Some have a full Grey Fusion 4.0® coating rated at 300 hours of salt spray. Others have a Black Fusion painted hat and edge.
- SAE-standard iron: Tensile strength, hardness and iron grade follow SAE standards for structural integrity.
- Turned finish: The non-directional, turned braking surface gives the pads a smooth surface to engage right out of the box.
Specifications: 12.441 in (316 mm) outside diameter; 0.472 in (12 mm) nominal thickness; 0.409 in (10.4 mm) discard thickness; 3.008 in (76.4 mm) overall height; 2.84 in (72.15 mm) center hole; 5 mounting bolt holes of 0.654 in (16.6 mm) on a 4.5 in (114.3 mm) bolt circle. An ABS tone ring is not included. Country of origin: China.
This rotor is sold individually. The listed applications use two, so replacing both rear rotors together as a matched pair is recommended for even, balanced braking. See the Buyer's Guide tab for full fitment details.
