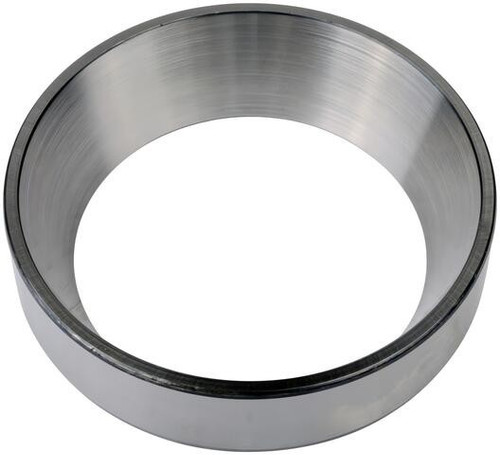

Give your axle's pinion bearing a fresh running surface with the Schaeffler Differential Pinion Race / Axle Pinion Race HM803110. This tapered roller bearing cup, or outer race, is the surface the bearing's rollers ride against. It is a direct-fit replacement for many vehicles, including the 1971-1997 Ford F-250, 1996-2004 Dodge Ram 1500 and 2002-2005 Chevrolet Silverado 1500. See the "Vehicles it fits" section for the full list.
Schaeffler tapered roller bearings pair load-carrying capacity with a compact design. They are used in wheel bearings, transmissions, differentials, transfer cases and other applications, and Schaeffler makes more than 100 million of them every year.
- Durability & performance: Engineered with high-grade materials for reliability and lifespan.
- Load efficiency: Well suited to applications that see complex loading conditions.
- Load distribution: A broad contact area spreads stress more effectively.
- OE expertise: Designed and manufactured to stringent OEM standards.
Specifications: width 0.906 in (23.02 mm); outside diameter 3.500 in (88.9 mm); quantity per application: 1. Country of origin: Spain.
Depending on the application, this cup is cataloged for front, rear, front inner, front outer, rear inner or rear outer positions.
Signs a pinion bearing race may need replacing include a whine or growl from the differential that changes between acceleration and coasting, or a pitted or spalled raceway found during inspection. Diagnose the cause before replacing parts. If the race is worn, it is common practice to replace it together with its matching cone and to follow the vehicle service information for pinion setup and preload.
Interchange: 454461 · NBHM803110 · 501041
This part cross-references / interchanges with the following part numbers:
454461, NBHM803110, HM803110, 501041
Frequently Asked Questions
What is the Schaeffler HM803110?
It is a tapered roller bearing cup (outer race) listed as a differential pinion race / axle pinion race. The bearing's rollers run against its raceway.
What are the dimensions of the HM803110 cup?
It measures 0.906 in (23.02 mm) wide and has a 3.500 in (88.9 mm) outside diameter.
Will it fit my vehicle?
It fits many vehicles, including the 2002-2005 Chevrolet Silverado 1500 and 1996-2004 Dodge Ram 1500. Check the "Vehicles it fits" section for your year, make and model.
Which position does this race install in?
Depending on the application, it is cataloged for front, rear, front inner/outer or rear inner/outer positions. The "Vehicles it fits" section shows the listing for each vehicle.
Should I replace the bearing cone at the same time?
Tapered bearing cups and cones wear together, so replacing them as a matched set is common practice. Follow your vehicle's service information for pinion depth and preload.
