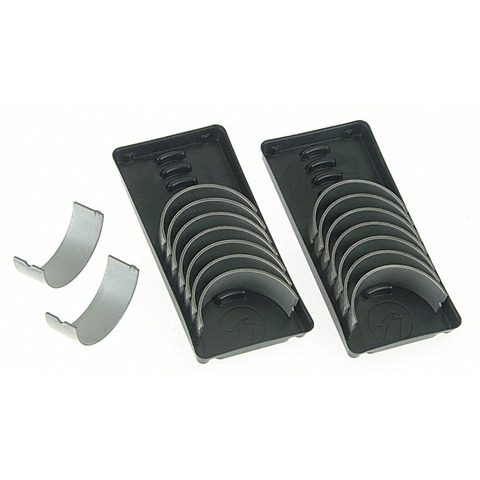

Sealed Power 8-2130CP rod bearing set for the 1994-2001 Dodge Ram 1500 V8 5.2L, the 1994-2003 Ram 1500 V8 5.9L and other vehicles gives each connecting rod a bearing surface on the crankshaft journal. These Sealed Power rod bearings are made for O.E. replacement in older engine applications.
- Steel-backed lining with an overplated copper-lead alloy surface
- Known for fatigue resistance and strength
- Conformability required by older engine applications
- Oil clearance of 0.013 mm to 0.074 mm
Quick facts
- Part: Sealed Power 8-2130CP rod bearing set
- Also called: connecting rod bearings
- Fits: the 1994-2001 Dodge Ram 1500 V8 5.2L, the 1994-2003 Ram 1500 V8 5.9L and other vehicles
- Material: Overplated copper-lead alloy
- Condition: New
A deep knock from the lower engine, falling oil pressure or metal in the oil can mean worn rod bearings. Before you replace this bearing set, rule out low oil level, a worn oil pump or a clogged pickup screen, which can give a similar knock or pressure drop.
Fits
The set also fits the 1994-1996 Dodge Ram 2500 V8 5.2L, the 1994-2002 Ram 2500 V8 5.9L, the 1989-1999 Dodge Dakota V8 5.2L and the 1998-2003 Dakota V8 5.9L. Each engine takes one set.
Specifications
Fit and size
- Quantity per vehicle: 1 set
- Housing bore: 57.150-57.168 mm (2.2500-2.2507 in)
- Standard shaft size: 53.950-53.975 mm (2.1240-2.1250 in)
- Wall thickness, max: 1.585 mm (0.0624 in)
- Overall length, max: 21.540 mm (0.8480 in)
- Oil clearance: 0.013-0.074 mm (0.0005 in minimum)
Build and materials
- Type: Rod bearing set
- Material: Overplated copper-lead alloy
- Backing: Steel
- Application: O.E. replacement
- Condition: New
- Country of origin: Mexico
Interchange: BR18-131-S
CB481P8 · RB1142 · BB136JSTD · K481P8 · CR8013SI · CR805AM · CR805SI · VPR91113
This part cross-references / interchanges with the following part numbers:
CB481P8, RB1142, BB136JSTD, K481P8, CR8013SI, CR805AM, CR805SI, BR18-131-S, VPR91113
Frequently Asked Questions
Is this Dodge Ram 1500 rod bearing set right for the 1994-2001 V8 5.2L or the 1994-2003 V8 5.9L?
Yes, Sealed Power 8-2130CP fits the 1994-2001 Dodge Ram 1500 V8 5.2L and the 1994-2003 Ram 1500 V8 5.9L. For a different car, look up your engine and years in the "Vehicles it fits" section.
What is this Sealed Power connecting rod bearing set made of?
The bearing surface is an overplated copper-lead alloy on a steel back. The lining gives the conformability that older engine applications require.
What oil clearance does this Sealed Power rod bearing set specify?
Sealed Power 8-2130CP lists an oil clearance of 0.013 mm to 0.074 mm (0.0005 in minimum). The standard shaft size is 53.950-53.975 mm (2.1240-2.1250 in).
Can a deep knock from the lower engine be a sign of worn rod bearings?
Yes, a deep knock, falling oil pressure or metal in the oil can all be signs of worn rod bearings. A shop can confirm the cause; have it checked promptly rather than driving on it.
Does Sealed Power 8-2130CP replace BR18-131-S?
Yes, BR18-131-S is one of the numbers this Sealed Power 8-2130CP rod bearing set replaces. The other cross-reference numbers are on the Interchange line.
