Sealed Power Engine Connecting Rod Bearing Set 8-2555CP10
Sealed Power Engine Connecting Rod Bearing Set 8-2555CP10

Rod Bearing Set for 1999-2016 Chevrolet Silverado 1500 & More - Sealed Power 8-2555CP 10

Be the first to review this product
$60.99
MPN: 8-2555CP10
UPC: 724956186389
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert

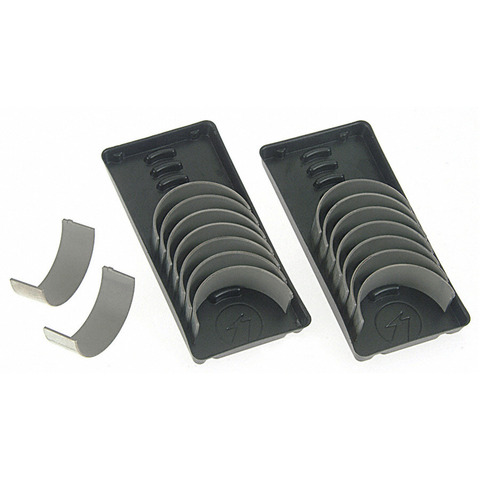

Sealed Power Engine Connecting Rod Bearing Set P/N:8-2555CP 10
Sealed Power Engine Connecting Rod Bearing Set P/N:8-2555CP 10
$60.99

Rebuild the bottom end on a reground crankshaft with the Sealed Power Rod Bearing Set 8-2555CP10. This premium-grade .010 in undersize set is made for rod journals ground .010 in under standard size. It fits many vehicles, among them the 1999-2016 Chevrolet Silverado 1500 4.8L / 5.3L / 6.0L / 6.2L, the 1999-2016 GMC Sierra 1500 4.8L / 5.3L / 6.0L / 6.2L and the 1988-1999 Chevrolet C1500 5.0L / 5.7L. See the Buyer's Guide tab for the full list.

These connecting rod bearings sit between each rod and its crankshaft journal and ride on a film of engine oil, supporting the rod as the crank turns.

  • Bearing construction: Steel-backed bronze alloy lining with overplate, popular for its fatigue resistance and strength.
  • Conformability: Provides the conformability older applications require. Sealed Power rates this standard material as comparable to competitors' performance bearings.
  • Material note: According to Sealed Power, this material resists wear and corrosion less than other materials do.
  • Quality: Made using ISO and QS certified manufacturing. Country of origin: United States.

Specifications: undersize .010 in; housing bore 2.2247-2.2252 in (56.507-56.520 mm); oil clearance 0.0005-0.0028 in (0.013-0.071 mm); maximum wall thickness 0.0622 in (1.58 mm); maximum overall length 0.8420 in (21.39 mm). The standard shaft figure of 2.0990-2.1000 in (53.315-53.340 mm) is the nominal journal size before the .010 in undersize grind, so this set is not for a standard-size crankshaft. The listed applications use one set.

Measure the crankshaft journals before ordering, and follow the vehicle service information for clearance checks and torque.

Interchange: RB3104.10 · 8B6956-010 · CR807CP 010
RB310410 · 8B6956010 · CR807CP010 · 8B663P10 · CB663P810 · BB253J010 · K663P0108 · CB8004S10

This part cross-references / interchanges with the following part numbers:

8B663P10, CB663P810, RB3104.10, BB253J010, K663P0108, 8B6956-010, CR807CP 010, CB8004S10

Frequently Asked Questions

What does the .010 undersize mean on this rod bearing set?

The bearings are sized for crankshaft rod journals ground .010 in under standard. The 2.0990-2.1000 in standard shaft figure is the nominal journal size before grinding, so measure your crank first.

Does this fit the 1999-2016 Chevrolet Silverado 1500 4.8L / 5.3L / 6.0L / 6.2L?

Yes, it is listed for the 1999-2016 Chevrolet Silverado 1500 4.8L / 5.3L / 6.0L / 6.2L when the crank's rod journals have been ground .010 in undersize. Check the Buyer's Guide tab for your exact years and engine.

What is the bearing lining made of?

It is a steel-backed bronze alloy lining with overplate, popular for fatigue resistance and strength. Sealed Power notes this material resists wear and corrosion less than other materials do.

What oil clearance does this set provide?

Sealed Power lists an oil clearance of 0.0005-0.0028 in (0.013-0.071 mm) and a housing bore of 2.2247-2.2252 in (56.507-56.520 mm).

What signs may mean the rod bearings need replacing?

A knocking noise from the lower engine, low oil pressure or metal particles in the oil may be signs of worn rod bearings. Other faults can cause these too, so diagnose the cause before replacing parts.
