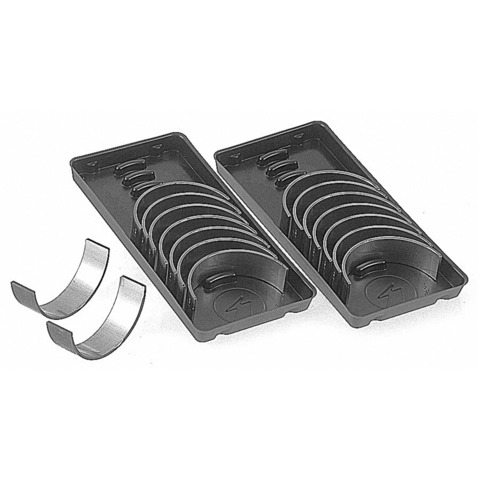

Sealed 8-4835A 25X2 rod bearing set for the 2011-2013 Ram 1500 V8 4.7L and other vehicles sits between each connecting rod and the crankshaft journal. The set suits engine rebuilds and replaces worn connecting rod bearings.
- Additional oversize outside diameter for reconditioning
- A-Series bi-metal aluminum alloy that resists seizure
- Designed to reduce or eliminate bearing wear
- Made with silicon for greater surface hardness
- Silicon particles help polish the crankshaft journal to further reduce wear during operation
Quick facts
- Part: Sealed 8-4835A 25X2 rod bearing set
- Also called: connecting rod bearings
- Fits: 2011-2013 Ram 1500 V8 4.7L and other vehicles
- Material: A-Series bi-metal aluminum alloy
- Condition: New
Worn bearings can show up as a knocking noise from the engine or a low oil pressure warning. If bearing wear is the cause, this set replaces them. With the engine off, look over the old bearings and crank journals for scoring or uneven wear, and measure them against the specifications before you decide. This listing is one set, and the 2011-2013 Ram 1500 V8 4.7L takes one.
Fits
It is listed for a wide range of Dodge, Ram, Jeep and Chrysler models, including the 2002-2010 Dodge Ram 1500 V8 4.7L and the 1999-2005 Jeep Grand Cherokee V8 4.7L. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Quantity per application: 1
- Housing bore: 53.9980-54.0110 mm (2.1259-2.1264 in)
- Standard shaft diameter: 50.9960-51.0030 mm (2.0077-2.0080 in)
- Wall thickness, max: 1.4910 mm (0.0587 in)
- Overall length, max: 16.6400 mm (0.6550 in)
- Oil clearance: 0.0100-0.0460 mm
- Design feature: .002 oversize rod bore
Build and materials
- Construction: A-Series bi-metal aluminum alloy made with silicon
- Grade: Premium
- Condition: New
- Country of origin: Mexico
Interchange: RB1100B.10 · BB503J.25 · CR8031SI0.25
CB1804P25MM
This part cross-references / interchanges with the following part numbers:
CB1804P25MM, RB1100B.10, BB503J.25, CR8031SI0.25
Frequently Asked Questions
Is this Sealed 8-4835A 25X2 the right Dodge Ram 1500 rod bearing set for the 2002-2010 V8 4.7L?
Yes. Sealed 8-4835A 25X2 is listed for the 2002-2010 Dodge Ram 1500 V8 4.7L. Open the "Vehicles it fits" section to check your exact model and engine.
What oil clearance does this rod bearing set run?
The oil clearance is 0.0100 mm to 0.0460 mm, with a 0.0004 in minimum. The housing bore is 53.9980-54.0110 mm.
Are these rod bearings tri-metal?
No. This set uses A-Series bi-metal aluminum alloy, made with silicon for greater surface hardness.
What can I check on my old rod bearings before ordering this set?
With the engine off, look at the old bearings and journals for scoring or uneven wear, and measure the journal. This set is sized for a standard shaft of 50.9960-51.0030 mm.
Does Sealed 8-4835A 25X2 interchange with RB1100B.10?
Yes. RB1100B.10 is an interchange number for Sealed 8-4835A 25X2, along with BB503J.25, CR8031SI0.25 and CB1804P25MM.
