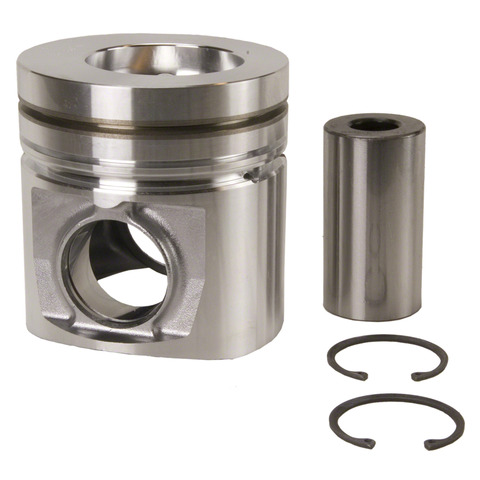

Sealed 2744PN .50MM engine piston for the 1991 Dodge D250 6-cylinder 5.9L and other vehicles carries combustion force down to the connecting rod. It meets or exceeds OEM specifications.
- Cast aluminum construction using FM132 eutectic proprietary alloy
- Oversized by 0.50 mm
- Recessed piston head with a compression height of 71.50 mm
- Piston pin outside diameter of 40.005 mm
Quick facts
- Part: Sealed 2744PN .50MM engine piston
- Fits: 1991 Dodge D250 6-cylinder 5.9L and other vehicles
- Material: Cast aluminum
- Condition: New
Oil use, blue exhaust smoke, an engine knock or low compression can mean worn pistons, but rings, valve seals and cylinder wear produce similar symptoms, so pin down the cause before you order pistons. A first check is measuring the cylinder bore with the engine off and cool and comparing it with this piston's 102.0 mm bore diameter; a shop can run compression and leak-down tests.
Fits
This piston fits the 1991 Dodge D250 6-cylinder 5.9L, the 1991 Dodge D350 6-cylinder 5.9L and the 1991 Dodge W250 6-cylinder 5.9L. The engine in each takes six pistons, and this listing is a single piston.
Specifications
Fit and size
- Quantity per vehicle: 6
- Oversize: 0.50 mm
- Cylinder bore diameter: 102.0 mm (4.0157 in)
- Piston pin outside diameter: 40.005 mm (1.575 in)
- Compression height: 71.50 mm (2.815 in)
- Top compression ring thickness: 3.00 mm
- Second compression ring thickness: 2.36 mm
- Oil ring thickness: 4.00 mm
Build and materials
- Piston material: cast aluminum
- Piston head type: recessed
- Condition: new
- Country of origin: United States
In the box
One piston. Assembly lubricant is not included.
Interchange: P1375050 · 2242575020 · A1709NP50MM · 3907157 · 1451P50MM
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
P1375050, 2242575020, A1709NP50MM, 3907157, 1451P50MM, 2744PN50MM
Frequently Asked Questions
Will the Sealed 2744PN .50MM piston fit a 1991 Dodge W250 6-cylinder 5.9L?
Yes. Sealed 2744PN .50MM is listed for the 1991 Dodge W250 6-cylinder 5.9L, which takes six pistons.
Does this piston come with assembly lubricant?
No. This listing is one piston, and assembly lubricant is not included.
What oversize is the Sealed 2744PN .50MM piston?
Sealed 2744PN .50MM is 0.50 mm oversize, with a cylinder bore diameter of 102.0 mm (4.0157 in).
Is this piston cast or forged?
It is a cast aluminum piston, cast with FM132 eutectic proprietary alloy, with a recessed head.
What pin diameter and ring thicknesses does this piston use?
The piston pin outside diameter is 40.005 mm (1.575 in). Ring thicknesses are 3.00 mm for the top compression ring, 2.36 mm for the second and 4.00 mm for the oil ring.
