Engine Piston for 1998-2002 Dodge Ram 2500 & More - Sealed Power 2774PNA

$175.99

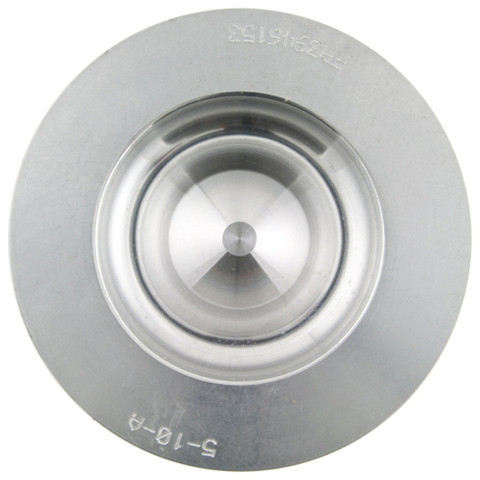

Sealed Power Engine Piston 2774PNA - view 2

Part number: 2774PNA

UPC: 614046954182

Condition: New

Weight: 4.70 LBS

Item Package Quantity: 1

$175.99

Current Stock: 24

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

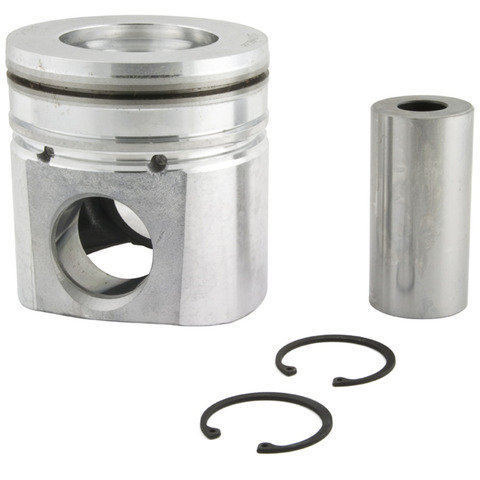

Sealed Power Engine Piston P/N:2774PNA

$175.99

Description

Sealed Power 2774PNA engine piston for the 1998-2002 Dodge Ram 2500 6-cylinder 5.9L and other vehicles takes the force of combustion in the cylinder and passes it to the connecting rod.

Cast aluminum construction with a bowl-type piston head
71.60 mm compression height for a 102.0 mm cylinder bore
Piston pin outside diameter of 40.00 mm
Top compression ring 3.00 mm, second compression ring 2.40 mm and oil ring 4.00 mm thick

Quick facts

Part: Sealed Power 2774PNA engine piston
Fits: 1998-2002 Dodge Ram 2500 6-cylinder 5.9L and other vehicles
Material: Cast Aluminum
Condition: New

Oil burning, lost compression or an engine knock can mean a piston is worn or damaged, though worn piston rings or a scored cylinder wall can also be behind them, so find the cause before you buy. This listing is one piston.

Fits

It fits the 1998-2002 Dodge Ram 2500 6-cylinder 5.9L and the 1998-2002 Dodge Ram 3500 6-cylinder 5.9L, and each of them takes six. Use it with the E-983KC ring set.

Specifications

Fit and size

Quantity per vehicle: 6
Cylinder bore diameter: 102.0 mm (4.0157 in)
Compression height: 71.60 mm
Piston pin outside diameter: 40.00 mm
Top compression ring thickness: 3.00 mm
Second compression ring thickness: 2.40 mm
Oil ring thickness: 4.00 mm
Oversized: No

Build and materials

Piston material: cast aluminum
Piston head type: bowl
Grade: Premium
Condition: new
Country of origin: United States

In the box

One engine piston. Assembly lubricant is not included.

Interchange: P5022

Product information is for general reference and may contain errors. See our Disclaimer.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

P5022

Buyer's Q&A

Frequently Asked Questions

Will this Sealed Power engine piston work in the 1998-2002 Dodge Ram 3500 6-cylinder 5.9L?

Yes. Sealed Power 2774PNA fits the 1998-2002 Dodge Ram 3500 6-cylinder 5.9L, and it also fits the 1998-2002 Dodge Ram 2500 6-cylinder 5.9L.

Do Sealed Power pistons like the 2774PNA come with assembly lubricant?

No. Sealed Power 2774PNA is sold as one piston, and assembly lubricant is not included.

Are Sealed Power cast pistons like this one made of aluminum?

Yes. This piston is cast aluminum with a bowl-type head, a 102.0 mm cylinder bore and a 71.60 mm compression height.

Which symptoms can point to a worn 102.0 mm bore piston like the 2774PNA?

Oil burning, lost compression or an engine knock can point to piston wear. A shop can measure the piston and bore against the specs to confirm it.

Which ring set goes with the 2774PNA piston?

The 2774PNA is a cast piston made for use with the E-983KC ring set.
