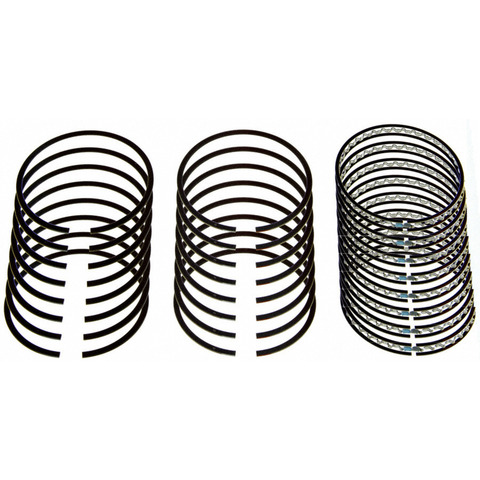

Sealed Power E-1003K piston ring set for the 2011-2021 Ford F-250 Super Duty V8 6.7L and other vehicles seals each piston to its cylinder wall and controls oil. Each piston gets a Sealed Power piston ring stack made up of a top ring, a second ring and an oil ring.
- Moly-plasma top ring with a porous surface that carries oil, forms a more effective compression seal and reduces friction and drag
- Carbidic cast iron second ring that seats instantly and controls inter-ring pressure to improve cylinder sealing
- Second ring passes heat efficiently from piston to cylinder and aids oil control
- Conformatic oil ring that keeps tension uniform while assuring a positive seal
Quick facts
- Part: Sealed Power E-1003K piston ring set
- Also called: engine piston ring set
- Fits: 2011-2021 Ford F-250 Super Duty V8 6.7L and other vehicles
- Material: Top ring steel with moly; second ring carbidic cast iron
- Condition: New
Rings that no longer seal can mean oil use, blue exhaust smoke, low compression or lost power. Those signs alone do not prove the rings are at fault, since leaking valve stem seals also burn oil.
Fits
Built for the V8 6.7L engine, this piston ring set also fits the 2011-2021 Ford F-350 Super Duty V8 6.7L and the 2011-2021 Ford F-450 Super Duty V8 6.7L. If your vehicle is not named here, look up its year and engine in the “Vehicles it fits” section.
Specifications
Fit and size
- Quantity per vehicle: 1 set
- Cylinders: 8
- Size: not oversized
- Top ring width: 3.00 mm
- Second ring width: 2.00 mm
- Oil ring width: 2.50 mm
- Groove widths: 3.0 x 2.0 x 2.5 mm
Build and materials
- Top ring material: steel with moly
- Second ring material: carbidic cast iron
- Oil ring design: Conformatic
- Condition: New
- Country of origin: India
In the box
This listing is one engine piston ring set for eight cylinders, with compression rings, rails and an oil spacer. The vehicle takes one set.
Interchange: C99008-STD
42168 · S42168 · PR4260 · BC3Z6148A · 2D5853
This part cross-references / interchanges with the following part numbers:
42168, S42168, PR4260, C99008-STD, BC3Z6148A, 2D5853
Frequently Asked Questions
Does the Sealed Power E-1003K fit the 2011-2021 Ford F-350 Super Duty V8 6.7L?
Yes. Sealed Power E-1003K is listed for the 2011-2021 Ford F-350 Super Duty V8 6.7L, and that engine takes one set.
Is this Sealed Power piston ring set oversized?
No. Sealed Power E-1003K is not oversized. Its top, second and oil rings are 3.00 mm, 2.00 mm and 2.50 mm wide.
Does this set include the oil ring rails and spacer?
Yes. The set comes with compression rings, rails and an oil spacer, and it covers eight cylinders.
What is the top ring made of in the E-1003K?
The top ring is steel with moly, and its moly-plasma surface is porous so it carries oil. The second ring is carbidic cast iron.
How do I know if my engine's piston rings are worn?
Oil use, blue exhaust smoke and weak performance can go with worn rings. A shop can run a compression or leak-down test to check them.
