Piston Ring Set for 2010-2014 Ford F-150 & More - Sealed Power E-1004K

$144.99
WARNING:California Proposition 65▾

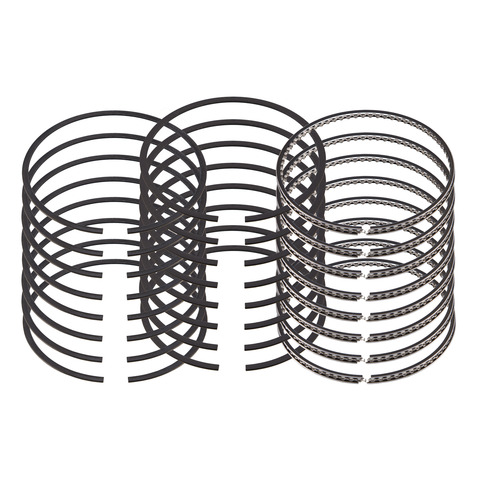

Sealed Power Engine Piston Ring Set E-1004K
Sealed Power Engine Piston Ring Set E-1004K

Vehicles this part fits
    Part number: E-1004K
    UPC: 019826223326
    Condition: New
    Weight: 0.80 LBS
    Item Package Quantity: 1
    $144.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    Sealed Power Engine Piston Ring Set P/N:E-1004K
    Sealed Power Engine Piston Ring Set P/N:E-1004K
    $144.99
    $144.99

    Sealed Power E-1004K piston ring set for the 2010-2014 Ford F-150 V8 6.2L and other vehicles seals compression and controls oil in each cylinder. Each Sealed Power piston ring in the set is a top, second or oil ring, and the set is also called an engine piston ring set.

    • Moly-plasma top ring with a porous surface that carries oil well
    • Top ring forms an effective compression seal while reducing friction and drag
    • Second rings seat instantly and control inter-ring pressure to improve cylinder sealing
    • Second rings aid piston-to-cylinder heat transfer and oil control
    • Oil rings use a 3-piece flex vent design that keeps tension uniform and holds a positive seal

    Quick facts

    • Part: Sealed Power E-1004K piston ring set
    • Also called: engine piston ring set
    • Fits: 2010-2014 Ford F-150 V8 6.2L and other vehicles
    • Material: Steel with moly (top ring), ductile iron with phosphate coating (second ring)
    • Condition: New

    Rising oil use, blue exhaust smoke or a loss of power can mean worn rings. Those signs alone do not prove the rings are the problem, since leaking valve stem seals can burn oil as well. The 2010-2014 Ford F-150 V8 6.2L takes one set.

    Fits

    It also fits the 2017-2019 Ford E-350 Super Duty V8 6.2L and the 2011-2019 Ford F-250 Super Duty V8 6.2L. If your vehicle is not named here, look up your year and engine in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Cylinder quantity: 8
    • Quantity per vehicle: 1 set
    • Size: not oversized
    • Ring set groove widths: 1.5 x 1.5 x 2.5 mm
    • Top ring width: 1.50 mm
    • Second ring width: 1.50 mm
    • Oil ring width: 2.50 mm

    Build and materials

    • Top ring material: steel with moly
    • Second ring material: ductile iron with phosphate coating
    • Oil ring design: 3-piece flex vent
    • Condition: New
    • Country of origin: India

    In the box

    Compression rings, rails and an oil spacer.

    Interchange: M10268-STD
    PR4224 · AU7Z6148G · 2M4520 · 42267CP

    This part cross-references / interchanges with the following part numbers:

    PR4224, M10268-STD, AU7Z6148G, 2M4520, 42267CP

    Frequently Asked Questions

    Is this Sealed Power piston ring set made for the 2010-2014 Ford F-150 V8 6.2L?

    Yes, Sealed Power E-1004K fits the 2010-2014 Ford F-150 V8 6.2L; other years and models are in the "Vehicles it fits" section.

    Does the E-1004K come with rails and an oil spacer?

    Yes. The Sealed Power E-1004K box holds compression rings, rails and an oil spacer.

    What are the top and second rings made of?

    The top ring is steel with moly, a moly-plasma ring with a porous surface. The second ring is ductile iron with a phosphate coating.

    Is the oil ring one piece or three?

    The oil ring is a 3-piece flex vent design, 2.50 mm wide. Its design keeps tension uniform while holding a positive seal.

    Can rising oil use mean the piston rings are worn?

    Yes, it can, and blue exhaust smoke or a loss of power are other signs. A shop can run the tests that confirm it, so have the engine checked promptly.
