Piston Ring Set for 2011-2017 Ford F-150 & More - Sealed Power E-1005K

$133.99
WARNING:California Proposition 65▾
Sealed Power Engine Piston Ring Set E-1005K
Sealed Power Engine Piston Ring Set E-1005K

Vehicles this part fits
    Part number: E-1005K
    UPC: 019826223333
    Condition: New
    Weight: 0.80 LBS
    Item Package Quantity: 1
    $133.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert

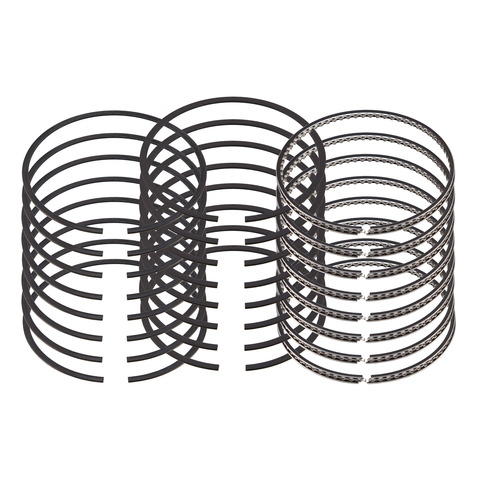

    Sealed Power Engine Piston Ring Set P/N:E-1005K
    Sealed Power Engine Piston Ring Set P/N:E-1005K
    $133.99
    $133.99

    Sealed Power E-1005K piston ring set for the 2011-2017 Ford F-150 V8 5.0L and other vehicles seals each cylinder and controls oil along the cylinder wall. This engine piston ring set covers eight cylinders.

    • Moly-plasma top ring with a porous surface that carries oil, seals compression and reduces friction and drag
    • Second rings seat instantly, control inter-ring pressure and move heat from the piston to the cylinder
    • Reverse torsional second ring face on a grey iron ring with phosphate coating
    • 3 piece flex vent oil ring that keeps tension uniform while sealing positively

    Quick facts

    • Part: Sealed Power E-1005K piston ring set
    • Also called: engine piston ring set
    • Fits: 2011-2017 Ford F-150 V8 5.0L and other vehicles
    • Material: Top ring steel with moly; second ring grey iron with phosphate coating
    • Condition: New

    Oil burning, blue exhaust smoke and weak compression can mean worn piston rings. These signs alone do not prove the rings are at fault; worn valve stem seals can burn oil too.

    Fits

    The Sealed Power piston ring set is a direct-fit replacement for the 2011-2017 Ford F-150 V8 5.0L and the 2011-2017 Ford Mustang V8 5.0L. The 2011-2017 Ford F-150 V8 5.0L takes one set.

    Specifications

    Fit and size

    • Cylinder quantity: 8
    • Quantity per vehicle: 1 set
    • Oversized: No
    • Ring set groove widths: 1.2 x 1.2 x 2.5 mm
    • Top ring width: 1.20 mm
    • Second ring width: 1.20 mm
    • Oil ring width: 2.50 mm

    Build and materials

    • Top ring material: steel with moly
    • Second ring material: grey iron with phosphate coating
    • Second ring face design: reverse torsional
    • Oil ring design: 3 piece flex vent
    • Condition: New
    • Country of origin: India

    In the box

    Compression rings, rails and an oil spacer.

    Interchange: M92218-STD · 021-6925-STD
    42149CP · PR4299 · CU7Z6148E · 2M4599

    This part cross-references / interchanges with the following part numbers:

    42149CP, PR4299, M92218-STD, CU7Z6148E, 2M4599, 021-6925-STD

    Frequently Asked Questions

    Do these Mustang piston rings fit a 2011-2017 Ford Mustang V8 5.0L?

    Yes. Sealed Power E-1005K fits the 2011-2017 Ford Mustang V8 5.0L and the 2011-2017 Ford F-150 V8 5.0L.

    Is this Sealed Power piston ring listing a single ring or a set?

    Sealed Power E-1005K is a ring set for eight cylinders, with compression rings, rails and an oil spacer in the box. One set is what the application takes.

    What are the top ring and second ring made of in this set?

    The top ring is steel with moly, and the second ring is grey iron with a phosphate coating. The second ring has a reverse torsional face.

    What ring widths does this piston ring set measure?

    The top and second rings are 1.20 mm wide and the oil ring is 2.50 mm wide, matching 1.2 x 1.2 x 2.5 mm ring grooves. The oil ring is a 3 piece flex vent design.

    Is CU7Z6148E a match for this piston ring set?

    Yes. CU7Z6148E is on the interchange list for Sealed Power E-1005K.
