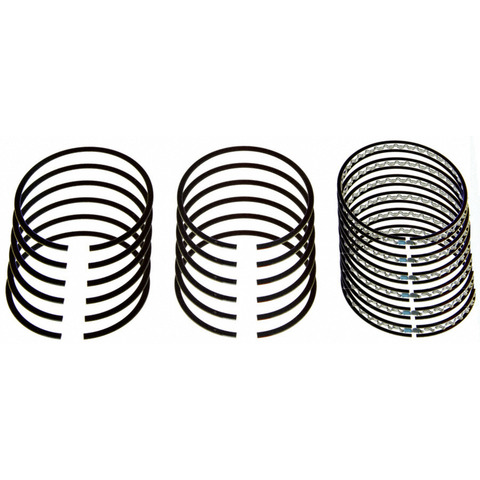

Sealed Power E-1014KC piston ring set for the 2005-2015 Toyota Tacoma V6 4.0L and other vehicles seals each piston against its cylinder wall. Each Sealed Power piston ring in the set helps hold cylinder pressure and control oil.
- Steel top ring with chrome plated facing for demanding conditions
- Second ring seats instantly and helps control inter-ring pressure, heat transfer and oil
- 3 piece flex vent oil ring keeps tension uniform while sealing positively
- Ring set for 6 cylinders, with groove widths of 1.2 x 1.2 x 2.0 mm
Quick facts
- Part: Sealed Power E-1014KC piston ring set
- Also called: engine piston ring set
- Fits: 2005-2015 Toyota Tacoma V6 4.0L and other vehicles
- Material: Top ring steel with chrome, second ring cast iron
- Condition: New
Rising oil use, blue exhaust smoke and weak power can mean worn rings. These signs alone do not prove the rings are at fault, since worn valve seals can burn oil too. The set covers six cylinders, with one set of rings per cylinder.
Fits
This ring set is listed for a wide range of Toyota models, led by the 2005-2015 Toyota Tacoma V6 4.0L, the 2003-2009 Toyota 4Runner V6 4.0L and the 2005-2014 Toyota Tundra V6 4.0L. Owners of other Toyota models can look up their year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Cylinders: 6
- Quantity per application: 1 set
- Oversized: No
- Ring set groove widths: 1.2 x 1.2 x 2.0 mm
- Top ring width: 1.20 mm
- Second ring width: 1.20 mm
- Oil ring width: 2.00 mm
Build and materials
- Top ring material: steel with chrome
- Second ring material: cast iron
- Second ring face design: reverse torsional
- Oil ring design: 3 piece flex vent
- Condition: New
- Country of origin: United States
In the box
Compression rings, rails and an oil spacer.
Interchange: S94126-STD · 021-1602-STD
PR969 · 2C5151 · 42172CP · RSTO49 · 130110P020
This part cross-references / interchanges with the following part numbers:
PR969, S94126-STD, 2C5151, 021-1602-STD, 42172CP, RSTO49, 130110P020
Frequently Asked Questions
Does the Sealed Power E-1014KC piston ring set fit the 2005-2015 Toyota Tacoma V6 4.0L?
Yes. Sealed Power E-1014KC is listed for the 2005-2015 Toyota Tacoma V6 4.0L. Other Toyota models and years are in the "Vehicles it fits" section.
Does the Sealed Power E-1014KC piston ring set include rails and an oil spacer?
Yes. Sealed Power E-1014KC comes with compression rings, rails and an oil spacer.
Is this Sealed Power piston ring set oversized?
No. This piston ring set is not oversized, and its groove widths are 1.2 x 1.2 x 2.0 mm.
Does this engine piston ring set have a chrome top ring?
Yes. The top ring is steel with a chrome plated facing, and the second ring is cast iron.
Is 2C5151 a cross-reference for the Sealed Power E-1014KC?
Yes. 2C5151 is on the interchange list for Sealed Power E-1014KC.
