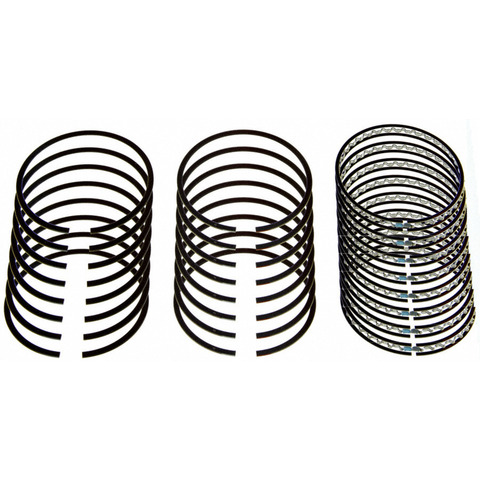

Sealed Power E-251KC piston ring set for the 1975-1995 Ford F-150 V8 5.0L, the 1977-1979 F-150 V8 6.6L, the 1977-1994 F-150 V8 5.8L, the 1996 F-150 V8 5.8L and other vehicles seals each piston against its cylinder wall and scrapes oil off the bore. This Sealed Power piston ring set meets or exceeds OEM specifications.
- Chrome-plated ring face that increases wear resistance in dirty air conditions
- Top ring made of steel with chrome
- Grey iron second ring with a reverse torsional face
- Three-piece flex vent oil ring
- State-of-the-art manufacturing to exacting tolerances
Quick facts
- Part: Sealed Power E-251KC piston ring set
- Also called: engine piston ring set
- Fits: the 1975-1995 Ford F-150 V8 5.0L, the 1977-1979 F-150 V8 6.6L, the 1977-1994 F-150 V8 5.8L, the 1996 F-150 V8 5.8L and other vehicles
- Material: top ring steel with chrome, second ring grey iron
- Condition: New
Worn rings can show up as oil consumption, blue exhaust smoke or low compression. Before you replace them, rule out other sources of those symptoms, such as leaking valve seals, since a shop can run compression and leakage tests to show whether the rings are involved.
Fits
This set is listed for a wide range of Ford, Chevrolet, GMC and Dodge models, including the 1988-1995 Chevrolet C1500 V8 5.7L and the 1988-1995 Chevrolet K1500 V8 5.7L. If your truck or car is not named here, look up its year, model and engine in the "Vehicles it fits" section. As an engine piston ring set it covers all eight cylinders, so the 1975-1995 Ford F-150 V8 5.0L takes one set.
Specifications
Fit and size
- Bore diameter: 4.0000 in
- Size: not oversized
- Ring set groove widths: 5/64 x 5/64 x 3/16 in
- Oil ring width: 0.1875 in
- Cylinders: 8
- Quantity per application: 1 set
Build and materials
- Top ring: steel with chrome
- Second ring: grey iron, reverse torsional face
- Ring face: chrome plated
- Oil ring: 3 piece flex vent
- Condition: New
- Country of origin: United States
Interchange: C40058-STD
3200569 · 3201901 · 40451 · 2106114 · 21119 · 3928450 · 8884917 · 8271 · 2C139 · PS4012 · S4012 · T8325HX
This part cross-references / interchanges with the following part numbers:
3200569, 3201901, 40451, 2106114, 21119, C40058-STD, 3928450, 8884917, 8271, 2C139, PS4012, S4012, T8325HX
Frequently Asked Questions
Does the Sealed Power E-251KC fit the 1996 Ford F-150 V8 5.8L?
Yes. Sealed Power E-251KC is listed for the 1996 Ford F-150 V8 5.8L, and also for the 1977-1994 F-150 V8 5.8L.
Is this piston ring set right for the 1988-1995 Chevrolet C1500 V8 5.7L?
Yes. Sealed Power E-251KC is listed for the 1988-1995 Chevrolet C1500 V8 5.7L, and for the 1988-1995 Chevrolet K1500 V8 5.7L as well.
What bore size is this Sealed Power piston ring set made for?
This set is made for a 4.0000 in bore and covers eight cylinders. It is not an oversized set.
What are the top ring and second ring made of on this piston ring set?
The top ring is steel with chrome, and the second ring is grey iron with a reverse torsional face. The oil ring is a 3 piece flex vent design.
Is 3200569 an interchange number for Sealed Power E-251KC?
Yes. 3200569 is one of the numbers this set replaces, along with C40058-STD, 3201901 and 40451.
