Piston Ring Set for 1986-1992 Ford Ranger & More - Sealed Power E-481X

$116.99
WARNING:California Proposition 65▾
Sealed Power Engine Piston Ring Set E-481X
Sealed Power Engine Piston Ring Set E-481X - view 2
Sealed Power Engine Piston Ring Set E-481X - view 3
Sealed Power Engine Piston Ring Set E-481X - view 4
Sealed Power Engine Piston Ring Set E-481X
Sealed Power Engine Piston Ring Set E-481X - view 2
Sealed Power Engine Piston Ring Set E-481X - view 3
Sealed Power Engine Piston Ring Set E-481X - view 4

Vehicles this part fits
    Part number: E-481X
    UPC: 053059614490
    Condition: New
    Weight: 0.80 LBS
    Item Package Quantity: 1
    $116.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    Sealed Power Engine Piston Ring Set P/N:E-481X
    Sealed Power Engine Piston Ring Set P/N:E-481X
    $116.99
    $116.99

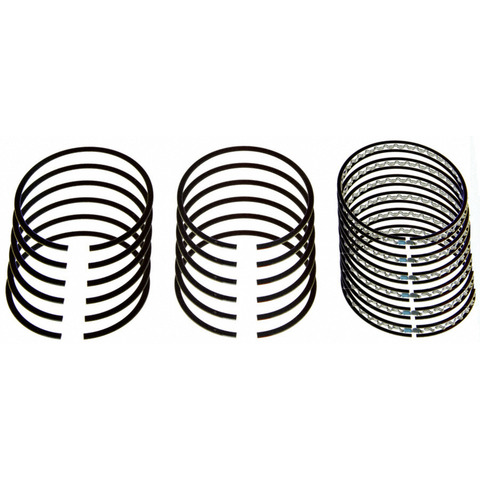

    Sealed Power E-481X piston ring set for the 1986-1992 Ford Ranger V6 2.9L and other vehicles seals each piston against its cylinder wall. The set is not oversized, its tolerances are exacting, and OEM specifications are met or exceeded.

    • Grey iron top ring, 1.60 mm wide
    • Grey iron second ring with a reverse torsional face, 1.75 mm wide
    • Three-piece flex vent oil ring, 3.50 mm wide
    • Exacting tolerances across the set

    Quick facts

    • Part: Sealed Power E-481X piston ring set
    • Also called: engine piston ring set
    • Fits: 1986-1992 Ford Ranger V6 2.9L and other vehicles
    • Material: Grey iron (top and second rings)
    • Condition: New

    Worn rings can mean blue exhaust smoke, oil burning or low compression. Because the rings may not be the cause, look at the cylinder walls for scoring and have the bores measured before you replace them. A compression or leak-down test is a job for a shop.

    Fits

    This engine piston ring set fits the 1986-1992 Ford Ranger V6 2.9L, the 1986-1990 Ford Bronco II V6 2.9L and the 1988-1989 Merkur Scorpio V6 2.9L. One set carries rings for all six cylinders, one group per piston, and an engine takes one set.

    Specifications

    Fit and size

    • Cylinders: 6
    • Quantity per vehicle: 1 set
    • Top ring width: 1.60 mm
    • Second ring width: 1.75 mm
    • Oil ring width: 3.50 mm
    • Oversized: No

    Build and materials

    • Top ring material: grey iron
    • Second ring material: grey iron
    • Second ring face: reverse torsional
    • Oil ring design: 3 piece flex vent
    • Condition: New
    • Country of origin: United States

    Interchange: R93016-STD
    481X · 51514CP · PR421 · 4450 · T8438X

    This part cross-references / interchanges with the following part numbers:

    481X, 51514CP, PR421, R93016-STD, 4450, T8438X

    Frequently Asked Questions

    Is this piston ring set right for the 1986-1992 Ford Ranger V6 2.9L?

    Yes. Sealed Power E-481X fits the 1986-1992 Ford Ranger V6 2.9L. It is not an oversized set.

    How many cylinders does this Sealed Power piston ring cover?

    Sealed Power E-481X has rings for six cylinders, so one set covers a V6 2.9L engine.

    What ring widths come in this Sealed Power piston ring set?

    The top ring is 1.60 mm wide, the second ring 1.75 mm and the oil ring 3.50 mm.

    Is the oil ring in this ring set one piece or several?

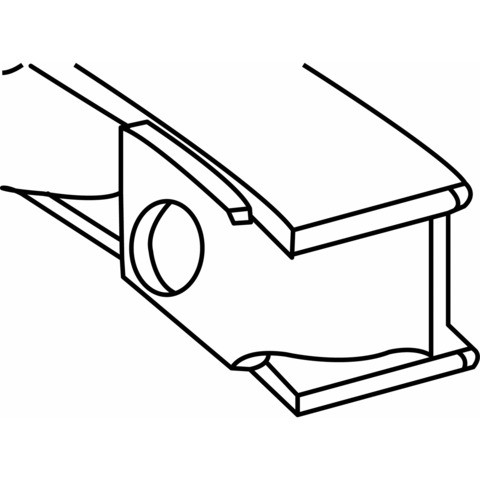

    The oil ring is a 3 piece flex vent design. The second ring has a reverse torsional face, and the top and second rings are grey iron.

    Can I cross-reference R93016-STD to this piston ring set?

    Yes. R93016-STD is on the interchange list for Sealed Power E-481X, along with 481X, 51514CP, PR421, 4450 and T8438X.
