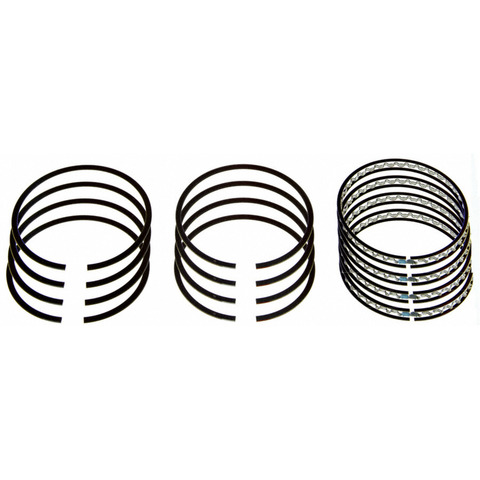

Sealed Power E-510KC piston ring set for the 1985-1995 Toyota 4Runner 4-cylinder 2.4L and other vehicles seals each piston against its cylinder wall. The Sealed Power piston rings in the set help hold combustion pressure in the cylinder, while the oil ring scrapes excess oil off its wall.

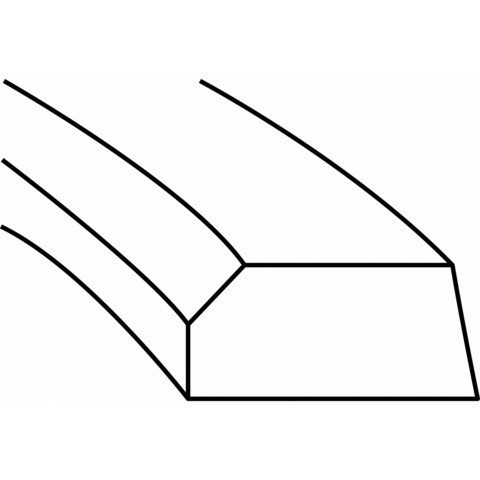

- Chrome plated ring face increases wear resistance in dirty air conditions
- Steel top ring with chrome and a grey iron second ring

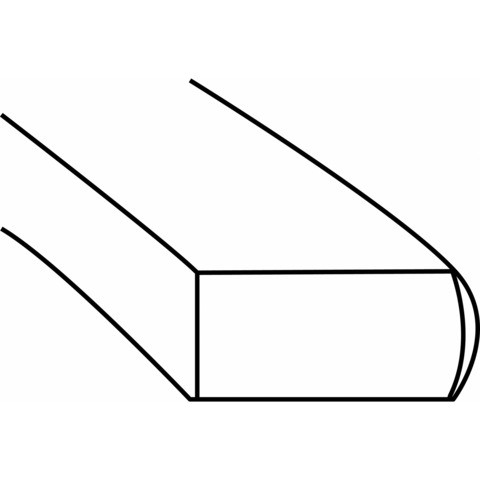

- Reverse torsional face on the second ring

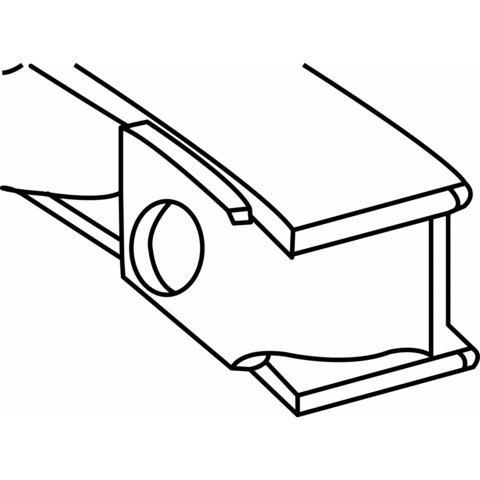

- Oil ring in a 3 piece flex vent design
- Exacting tolerances from state-of-the-art manufacturing
Quick facts
- Part: Sealed Power E-510KC piston ring set
- Also called: engine piston ring set
- Fits: 1985-1995 Toyota 4Runner 4-cylinder 2.4L and other vehicles
- Condition: New
Worn rings can show up as oil use, blue exhaust smoke or weak compression. Before you replace the rings, rule out valve stem seals and the PCV system, since either could be behind the same symptoms. This set is also sold as an engine piston ring set. It covers four cylinders, and the 1985-1995 Toyota 4Runner 4-cylinder 2.4L takes one set.
Fits
The 1985-1995 Toyota 4Runner 4-cylinder 2.4L, the 1985-1995 Toyota Pickup 4-cylinder 2.4L and the 1989-1994 Mazda MPV 4-cylinder 2.6L are among the vehicles this set fits. It meets or exceeds OEM specifications. If your car is not named here, look up its year, model and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Engines: L4-2.4L, L4-2.6L
- Cylinders covered: 4
- Quantity per vehicle: 1 set
- Ring groove widths: 1.5 x 1.5 x 4.0 mm (top, second, oil)
- Oversized: No
Build and materials
- Top ring material: steel with chrome
- Second ring material: grey iron
- Ring face: chrome plated
- Second ring face: reverse torsional
- Oil ring: 3 piece flex vent
- Condition: New
- Country of origin: United States
Interchange: C92114-STD · 021-6132-STD
0138109 · 41489CP · 510C · 2106277 · 41489 · 41588 · 2C4216 · G60111SCOA · PS2397 · T8443HX · RSMA16 · 1301135041 · 1301135050 · 1301135051 · 1301135052
This part cross-references / interchanges with the following part numbers:
0138109, 41489CP, 510C, 2106277, 41489, 41588, C92114-STD, 2C4216, 021-6132-STD, G60111SCOA, PS2397, T8443HX, RSMA16, 1301135041, 1301135050, 1301135051, 1301135052
Frequently Asked Questions
Does the Sealed Power E-510KC fit the 1985-1995 Toyota Pickup 4-cylinder 2.4L?
Yes. Sealed Power E-510KC fits the 1985-1995 Toyota Pickup 4-cylinder 2.4L. For another vehicle, look up its year, model and engine in the "Vehicles it fits" section.
Is the Sealed Power piston ring set oversized?
No. Sealed Power E-510KC is not oversized, and its ring groove widths are 1.5 x 1.5 x 4.0 mm for the top, second and oil rings.
What are the top and second rings in the E-510KC made of?
The top ring is steel with chrome and the second ring is grey iron. The oil ring is a 3 piece flex vent design.
What signs can point to worn piston rings before I buy a ring set?
Oil use, blue exhaust smoke or weak compression can mean worn rings. A shop can run a compression or leak-down test to confirm before you open the engine.
Does the 510C number cross to the Sealed Power E-510KC?
Yes. 510C is one of the numbers on the Interchange line, so Sealed Power E-510KC replaces it.
