Sealed Power E-920K piston ring set for the 1999-2014 Chevrolet Silverado 1500 V6 4.3L and other vehicles seals each piston against the cylinder wall and controls oil on the bore. Every Sealed Power piston ring in this standard-size set suits a 4.0000-inch bore, and the set covers six cylinders.
- Face of top rings coated with latest generation Plasma-Moly
- Ring set decreases friction and is very resistant to scuffing
- Exacting tolerances
- Reverse torsional face design on the 2nd ring, made of grey iron
- 3 piece flex vent oil ring design
Quick facts
- Part: Sealed Power E-920K piston ring set
- Also called: engine piston ring set
- Fits: 1999-2014 Chevrolet Silverado 1500 V6 4.3L and other vehicles
- Material: Top ring steel with moly, 2nd ring grey iron
- Condition: New
An engine piston ring set wears with miles, and tired rings can show up as rising oil use, blue-gray exhaust smoke or low compression. Valve seals and other engine wear can burn oil too, so if worn rings are the cause, this set replaces them. Before opening the engine, watch the dipstick over time with the engine off and cool, and leave the compression or leak-down test to a shop.
Fits
This ring set for the 4.3L V6 is a direct-fit replacement for the 1999-2013 GMC Sierra 1500 V6 4.3L and the 1996-1998 Chevrolet C1500 V6 4.3L, along with many other vehicles listed for that engine. It meets or exceeds OEM specifications.
Specifications
Fit and size
- Quantity per vehicle: 1 set
- Cylinder quantity: 6
- Bore diameter: 4.0000 in
- Size: standard (not oversized)
- Ring widths: top 1.50 mm, 2nd 1.50 mm, oil 3.00 mm
- Ring set groove widths: 1.5 x 1.5 x 3.0 mm
Build and materials
- Top ring: steel with moly, Plasma-Moly coated face

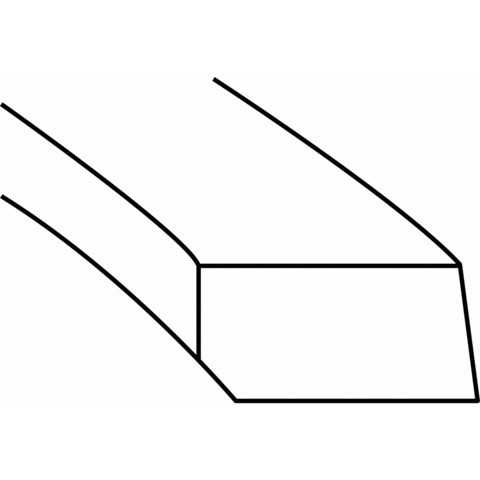

- 2nd ring: grey iron, reverse torsional face

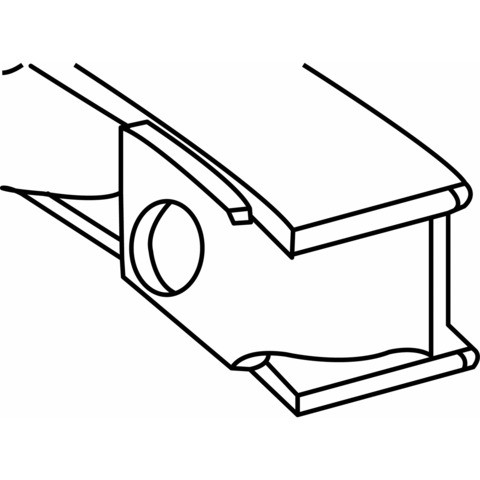

- Oil ring: 3 piece flex vent
- Condition: New
- Country of origin: United States
In the box
One piston ring set covering six cylinders. The vehicle takes one set.
Interchange: C10216-STD
41786 · PR3129 · 12522848 · 88894243 · 2M4862 · H920K
This part cross-references / interchanges with the following part numbers:
41786, PR3129, C10216-STD, 12522848, 88894243, 2M4862, H920K
Frequently Asked Questions
Is this Sealed Power piston ring set the right one for the 1999-2013 GMC Sierra 1500 V6 4.3L?
Yes. Sealed Power E-920K fits the 1999-2013 GMC Sierra 1500 V6 4.3L and many other vehicles with that engine. If your car is not named here, look up its year and engine in the "Vehicles it fits" section.
What bore size is the Sealed Power E-920K ring set made for?
Sealed Power E-920K is a standard-size set, not oversized, for a 4.0000-inch bore. Ring widths are 1.50 mm for the top ring, 1.50 mm for the 2nd ring and 3.00 mm for the oil ring.
Is one set enough to ring all six cylinders of a 4.3L V6?
Yes. This ring set covers six cylinders, and each vehicle takes one set.
What coating is on the top rings of this ring set?
The face of the top rings has a latest generation Plasma-Moly coating that decreases friction and resists scuffing. The top ring is steel with moly, and the 2nd ring is grey iron.
Can I use Sealed Power E-920K in place of part number C10216-STD?
Yes. C10216-STD is one of the numbers Sealed Power E-920K replaces.
