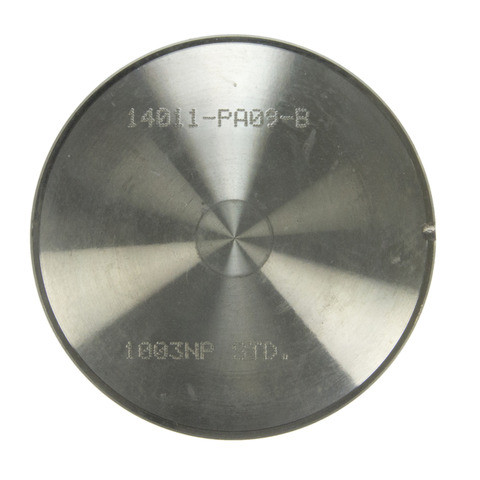

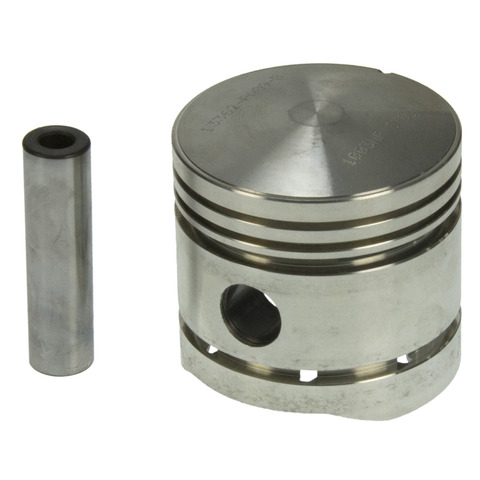

Sealed Power 1003NP piston set for the 1953 Ford F-250 V8 3.9L and other vehicles replaces worn pistons in classic engine rebuilds. The cast aluminum piston set meets or exceeds OEM specifications.
- Sealed Power Vintage line covers older applications
- Cast from FM413 eutectic aluminum with 12% silicon for strength and durability
- Up-tilt ring grooves improve piston-to-ring sealing and blow-by control
- Exacting tolerances from state-of-the-art manufacturing
Quick facts
- Part: Sealed Power 1003NP piston set
- Also called: engine piston set
- Fits: 1953 Ford F-250 V8 3.9L and other vehicles
- Material: Cast aluminum
- Condition: New
Oil burning, low compression or a knock from the engine can mean worn pistons, but worn piston rings or scored cylinder walls can be behind them too, so sort out the cause before you replace anything. The 1953 Ford F-250 V8 3.9L takes eight pistons.
Fits
The vehicles it fits include the 1953 Ford F-250 V8 3.9L, the 1953 Ford Club V8 3.9L and the 1950-1953 Ford Country Sedan V8 3.9L, along with other Ford and Mercury models.
Specifications
Fit and size
- Quantity per vehicle: 8
- Bore diameter: 3.1875 in
- Compression height: 1.519 in
- Top compression ring thickness: 0.09375 in
- Second compression ring thickness: 0.09375 in
- Oil ring thickness: 0.1875 in
- Oversized: No
Build and materials
- Piston material: Cast aluminum
- Piston head type: Dome
- Condition: New
- Country of origin: India
In the box
Assembly lubricant is not included.
Interchange: 8BA6108A · 8BA6110A
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Will these Sealed Power pistons fit a 1953 Ford F-250 V8 3.9L?
Yes. Sealed Power 1003NP is listed for the 1953 Ford F-250 V8 3.9L. To check a different Ford or Mercury, find its year and engine in the "Vehicles it fits" section.
Are Sealed Power cast pistons made of aluminum?
Yes. Sealed Power 1003NP pistons are cast aluminum, made from FM413 eutectic aluminum with 12% silicon.
What bore size is this Sealed Power piston set made for?
The bore diameter is 3.1875 in and the compression height is 1.519 in. The set is not oversized.
Does this Sealed Power engine piston set include assembly lubricant?
No. Assembly lubricant is not included with this piston set, so plan to buy it separately.
Is 8BA6108A a number that Sealed Power 1003NP replaces?
Yes. Sealed Power 1003NP replaces both 8BA6108A and 8BA6110A.
