Piston Set for 1963-1965 Chevrolet Impala & More - Sealed 1107NP 60

$326.99
Sealed Power Engine Piston Set 1107NP60
Sealed Power Engine Piston Set 1107NP60

Vehicles this part fits
    Part number: 1107NP60
    UPC: 614046908529
    Condition: New
    Weight: 4.49 LBS
    Pack of 6
    $326.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert

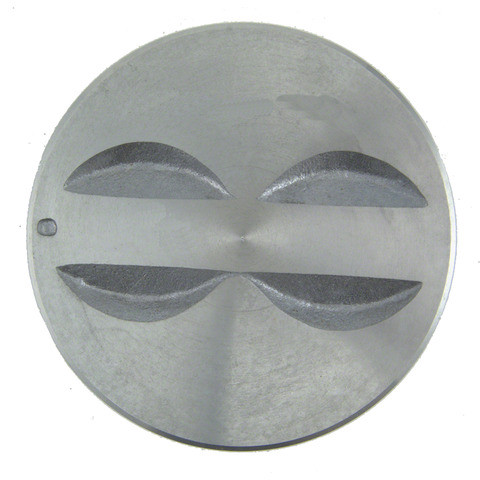

    Sealed Power Engine Piston Set P/N:1107NP 60 (Pack of 6)
    Sealed Power Engine Piston Set P/N:1107NP 60 (Pack of 6)
    $326.99
    $326.99

    Sealed 1107NP 60 piston set for the 1963-1965 Chevrolet Impala 6-cylinder 3.8L and other vehicles supplies the cast aluminum pistons for an engine rebuild. It is a 0.060 in oversize set.

    • Sealed Power Vintage line for classic engine rebuilds
    • Cast with FM132 Eutectic proprietary alloy
    • Controlled casting and machining for reliability and long life
    • Up-tilt ring grooves improve piston-to-ring sealing
    • Provides blow-by control

    Quick facts

    • Part: Sealed 1107NP 60 piston set
    • Also called: engine piston set
    • Fits: 1963-1965 Chevrolet Impala 6-cylinder 3.8L and other vehicles
    • Material: Cast aluminum
    • Condition: New

    Worn rings, scored cylinder bores or a tired bearing can bring on blow-by, oil use and engine knock too, so find the cause before you buy pistons. If worn pistons are behind those signs, this set replaces them.

    Fits

    Among the vehicles it fits are the 1963-1966 Chevrolet Suburban 6-cylinder 3.8L and the 1967-1969 Chevrolet Camaro 6-cylinder 3.8L, and each takes six pistons. If your car is not named here, look it up by year, model and engine in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Quantity per vehicle: 6
    • Bore diameter: 3.8750 in
    • Oversize: 0.060 in
    • Piston pin outside diameter: 0.9278 in (23.566 mm)
    • Compression height: 1.780 in
    • Pin offset: 0.06 in (1.524 mm)
    • Top and second compression ring thickness: 0.0781 in each
    • Oil ring thickness: 0.1875 in

    Build and materials

    • Material: Cast aluminum
    • Alloy: FM132 Eutectic proprietary alloy
    • Piston head type: Flat
    • Condition: New
    • Country of origin: Mexico

    In the box

    The piston set. Assembly lubricant is not included.

    Frequently Asked Questions

    Will the Sealed 1107NP 60 pistons fit a 1967-1969 Chevrolet Camaro 6-cylinder 3.8L?

    Yes. Sealed 1107NP 60 fits the 1967-1969 Chevrolet Camaro 6-cylinder 3.8L, which takes six pistons. For any other car, look in the "Vehicles it fits" section.

    What oversize is this engine piston set?

    Sealed 1107NP 60 is 0.060 in oversize, with a bore diameter of 3.8750 in. The piston pin outside diameter is 0.9278 in (23.566 mm).

    Does this piston set come with assembly lubricant?

    No. Assembly lubricant is not included with this piston set, so you need to have it on hand separately.

    Which signs can come from worn pistons?

    Heavy blow-by, oil use and an engine knock can come from worn pistons, rings or bores. A machine shop can measure piston and bore wear against spec.

    Are these Sealed Power pistons cast or forged?

    They are cast. Sealed 1107NP 60 uses cast aluminum made with FM132 Eutectic proprietary alloy and has a flat head.
