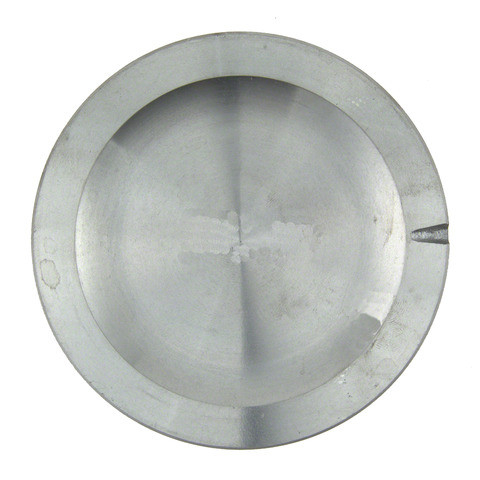

Sealed 405P 30 piston set for the 1971-1978 Dodge Charger V8 5.9L and other vehicles turns combustion pressure into force on the connecting rod. The pistons match or beat OEM specifications and give the performance and dependability of original equipment pistons.
- Cast aluminum pistons made with FM132 Eutectic proprietary alloy
- Recessed piston head
- Oversized by 0.030 inch
Quick facts
- Part: Sealed 405P 30 piston set
- Also called: engine piston set
- Fits: 1971-1978 Dodge Charger V8 5.9L and other vehicles
- Material: Cast aluminum
- Condition: New
A worn engine piston set can show up as a knock, blue exhaust smoke or higher oil use. Worn piston rings, valve seals or rod bearings can be behind these signs too, so find the cause before buying pistons.
Fits
The 1971-1978 Dodge Charger V8 5.9L, the 1978-1979 Chrysler Town & Country V8 5.9L and the 1984-1991 Dodge D150 V8 5.9L take this piston set, along with many other Chrysler, Dodge and Plymouth models. If your vehicle isn't named here, look it up in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 8
- Bore diameter: 4.0000 inch
- Compression height: 1.576 inch
- Pin offset: 0.06 inch (1.524 mm)
- Piston pin outside diameter: 0.9842 inch (24.999 mm)
- Top and second compression ring thickness: 0.0781 inch
- Oil ring thickness: 0.1875 inch
Build and materials
- Piston material: Cast aluminum
- Grade: Premium
- Condition: New
- Country of origin: India
In the box
One piston set; the V8 5.9L engines call for eight pistons. Assembly lubricant is not included.
Interchange: P1530(8)030
P1140 · 8279P30 · L3017F30 · Z7044030
This part cross-references / interchanges with the following part numbers:
P1140, P1530(8)030, 8279P30, L3017F30, Z7044030
Frequently Asked Questions
Does the Sealed 405P 30 piston set fit the 1971-1978 Dodge Charger V8 5.9L?
Yes. Sealed 405P 30 fits the 1971-1978 Dodge Charger V8 5.9L, which takes eight pistons. For any other vehicle, look it up in the "Vehicles it fits" section.
Does this piston set come with assembly lubricant?
No. Assembly lubricant is not included with the Sealed 405P 30. The listing is one piston set, and the V8 5.9L engines call for eight pistons.
What material and alloy are these pistons made from?
This piston set is cast aluminum, made with FM132 Eutectic proprietary alloy, and it has a recessed head.
How big are these oversized pistons?
They are oversized by 0.030 inch. The bore diameter is listed as 4.0000 inch, and the piston pin outside diameter is 0.9842 inch (24.999 mm).
Is P1140 an interchange number for the Sealed 405P 30?
Yes. P1140 is listed as an interchange number for Sealed 405P 30. The Interchange line at the bottom of the page gives the other cross-reference numbers.
