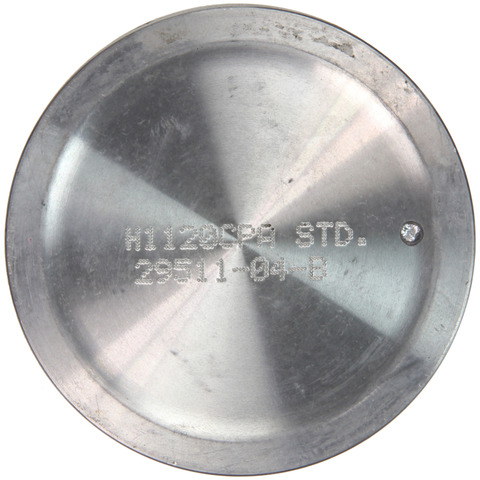

Sealed Power H1120CPA engine piston for the 2004-2008 Chevrolet Malibu 4-cylinder 2.2L and other vehicles carries combustion pressure down to the connecting rod. Sealed Power pistons are application-specific components for today's engines, sold here as a cast piston set.
- Helps improve cylinder sealing for less blow-by
- Retains standard ring gaps in the top groove
- DUROSHIELD skirt-coated piston
- Moly-graphite coating reduces friction for higher fuel economy and extends engine life
- Prevents damage from inadequate lubrication on start-up
- Hypereutectic piston material with a flat piston head
Quick facts
- Part: Sealed Power H1120CPA engine piston
- Fits: 2004-2008 Chevrolet Malibu 4-cylinder 2.2L and other vehicles
- Material: Hypereutectic
- Condition: New
Oil consumption, blue exhaust smoke or low compression can come from worn pistons or rings, but they have other causes too. Before replacing pistons, look the cylinder walls over for scoring and measure the bores against the engine's specification, with the engine off and apart.
Fits
Besides the 2004-2008 Chevrolet Malibu 4-cylinder 2.2L, this set fits the 2005-2008 Chevrolet Cobalt 4-cylinder 2.2L and the 2006-2008 Chevrolet HHR 4-cylinder 2.2L, with four pistons going into each engine. Owners of other cars can look up their year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per engine: 4
- Compression height: 26.50 mm
- Piston pin outside diameter: 20.00 mm
- Top compression ring thickness: 1.20 mm
- Second compression ring thickness: 1.50 mm
- Piston head type: Flat
- Oversized: No
Build and materials
- Type: Cast piston set
- Piston material: Hypereutectic
- Skirt coating: DUROSHIELD
- Condition: New
- Country of origin: India
In the box
One set of pistons. Assembly lubricant is not included.
Interchange: P5040(4)STD · 224-3730
P317 · 12591087 · 3495HC
This part cross-references / interchanges with the following part numbers:
P317, P5040(4)STD, 12591087, 224-3730, 3495HC
Frequently Asked Questions
Will these Sealed Power H1120CPA pistons fit a 2005-2008 Chevrolet Cobalt 4-cylinder 2.2L?
Yes. Sealed Power H1120CPA fits the 2005-2008 Chevrolet Cobalt 4-cylinder 2.2L, and that engine takes four pistons.
Does this Sealed Power engine piston set come with assembly lubricant?
No. Sealed Power H1120CPA does not include assembly lubricant.
Are these Sealed Power hypereutectic pistons coated?
Yes. The skirt has a DUROSHIELD coating, and the moly-graphite coating reduces friction. The piston head is flat.
What are the ring thicknesses on these Sealed Power cast pistons?
On the Sealed Power H1120CPA, the top compression ring thickness is 1.20 mm and the second compression ring thickness is 1.50 mm. The piston pin outside diameter is 20.00 mm.
Could blue smoke and oil use mean the pistons are worn?
They can, but worn rings or other engine wear can also show up this way. A shop can test compression and cylinder leakage to find the cause.
