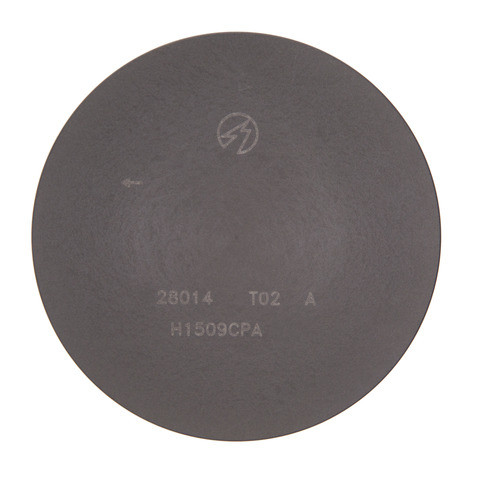

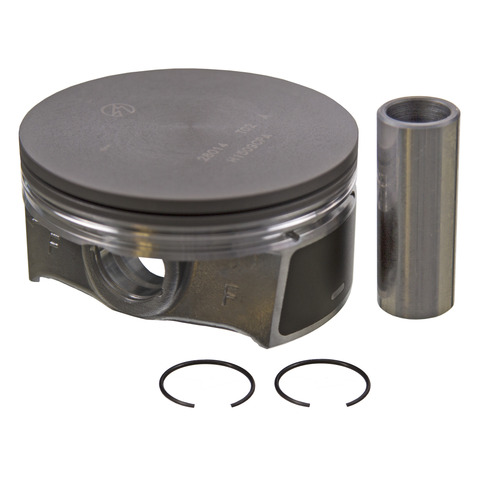

Sealed Power H1509CPA piston set for the 2006-2010 Jeep Grand Cherokee V8 6.1L and other vehicles transfers combustion force to the connecting rods. These Sealed Power hypereutectic pistons are a cast set with flat heads, designed to help restore engine performance.
- Sealed Power cast pistons are machined for reliability, durability and long part life
- State-of-the-art manufacturing with exacting tolerances
- Up-tilt ring grooves improve piston-to-ring sealing for good blow-by control
- Hypereutectic piston material with a flat piston head
Quick facts
- Part: Sealed Power H1509CPA piston set
- Also called: engine piston set
- Fits: the 2006-2010 Jeep Grand Cherokee V8 6.1L and other vehicles
- Material: Hypereutectic
- Condition: New
The set gives the performance and dependability of OE pistons and meets or exceeds OEM specifications. Worn pistons can show up as oil burning, low compression or heavy blow-by. Before you replace the pistons, rule out other sources of those signs, such as valve or head gasket trouble, and have a shop run a compression or leak-down test.
Fits
Fitment includes the 2006-2010 Jeep Grand Cherokee V8 6.1L and the 2005-2010 Chrysler 300 V8 6.1L. The 2006-2010 Dodge Charger V8 6.1L takes eight pistons. If your car is not named here, look it up in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 8
- Compression height: 31.00 mm
- Piston pin outside diameter: 25.00 mm
- Top compression ring thickness: 1.50 mm
- Second compression ring thickness: 1.50 mm
- Oversized: No
Build and materials
- Type: cast piston set
- Piston material: hypereutectic
- Piston head: flat
- Condition: New
- Country of origin: Argentina
In the box
The piston set. Assembly lubricant is not included.
Interchange: 224-3861 · P6019(8)STD
68031890AD · P1162 · 3258HCA
This part cross-references / interchanges with the following part numbers:
68031890AD, 2243861, P1162, P6019(8)STD, 224-3861, 3258HCA
Frequently Asked Questions
Do these Sealed Power pistons fit the 2006-2010 Dodge Charger V8 6.1L?
Yes. Sealed Power H1509CPA fits the 2006-2010 Dodge Charger V8 6.1L, which takes eight pistons. For other cars, look in the "Vehicles it fits" section.
What is the compression height of this Sealed Power engine piston?
Sealed Power H1509CPA has a compression height of 31.00 mm and a piston pin outside diameter of 25.00 mm. The piston head is flat.
Does this engine piston set come with assembly lubricant?
No. Assembly lubricant is not included with this Sealed Power H1509CPA piston set.
What compression ring thickness is listed for this piston set?
The top and second compression ring thickness is 1.50 mm each. The set is not oversized.
Is Sealed Power H1509CPA the same as piston number 224-3861?
Yes. 224-3861 is a listed interchange number for Sealed Power H1509CPA.
