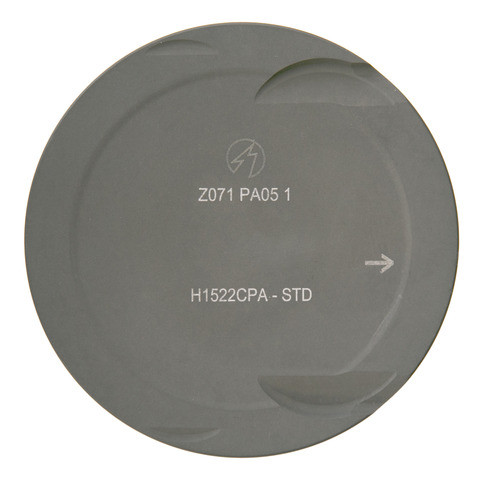

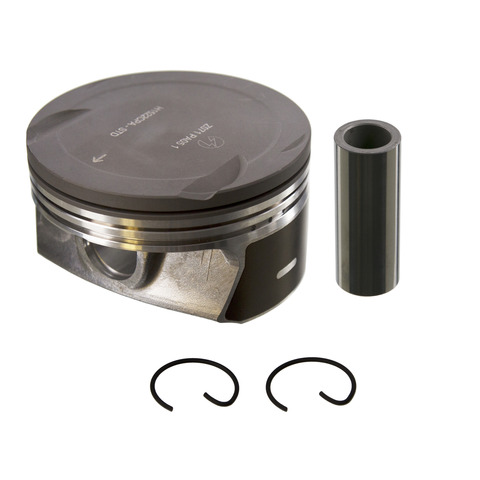

Sealed H1522CPA .50MM piston set for the 2010-2014 Ford F-150 V8 6.2L and other vehicles turns combustion pressure into force on the connecting rods. This engine piston set is a 0.50 mm oversize.
- Hypereutectic pistons cast with S2N proprietary alloy
- Duroshield graphite coating helps prevent scuffing of the skirt and cylinder wall
- Anodized ring grooves are machined to reduce oil consumption, blow-by and emissions and to extend engine life
- Ultra-precise pin bores with machined lube slots keep lubrication tolerances controlled with either pin installation method
- Dish piston head with a 33.25 mm compression height
Quick facts
- Part: Sealed H1522CPA .50MM piston set
- Also called: engine piston set
- Fits: 2010-2014 Ford F-150 V8 6.2L and other vehicles
- Material: Hypereutectic
- Condition: New
A worn piston set can show up as oil burning, blue exhaust smoke or lost compression. These signs alone do not prove the pistons are the problem, since worn valve seals can burn oil too.
Fits
This piston set is listed for a wide range of Ford models, led by the 2010-2014 Ford F-150 V8 6.2L, the 2011-2020 Ford F-250 Super Duty V8 6.2L and the 2011-2020 Ford F-350 Super Duty V8 6.2L. The 2011-2020 Ford F-250 Super Duty V8 6.2L takes eight pistons.
Specifications
Fit and size
- Oversize: 0.50 mm
- Compression height: 33.25 mm
- Piston pin outside diameter: 24.00 mm
- Top compression ring thickness: 1.50 mm
- Second compression ring thickness: 1.50 mm
- Quantity per vehicle: 8
Build and materials
- Piston material: Hypereutectic
- Piston head type: Dish
- Coating: Duroshield graphite
- Condition: New
- Country of origin: India
In the box
The piston set. Assembly lubricant is not included.
Interchange: P4224.20 · P5093(8).50 · 224-3898-0.50MM
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
P4224.20, P5093(8).50, 224-3898-0.50MM
Frequently Asked Questions
Does the Sealed H1522CPA .50MM fit the 2011-2020 Ford F-250 Super Duty V8 6.2L?
Yes, the Sealed H1522CPA .50MM piston set is listed for the 2011-2020 Ford F-250 Super Duty V8 6.2L. For another Ford, look up your year and engine in the "Vehicles it fits" section.
What does the .50MM in H1522CPA .50MM mean?
It refers to the 0.50 mm oversize of this piston set.
Is assembly lubricant included with the Sealed H1522CPA .50MM pistons?
No. The Sealed H1522CPA .50MM listing does not include assembly lubricant.
What coating do these hypereutectic pistons have?
The pistons carry a Duroshield graphite coating, which helps prevent scuffing of the skirt and cylinder wall.
Can these pistons be installed with either pin method?
Yes. The ultra-precise pin bores and precision-machined lube slots keep lubrication tolerances controlled with either pin installation method.
