Piston Set for 2010-2014 Ford F-150 & More - Sealed Power H1522CPA

$832.99
Sealed Power Engine Piston Set H1522CPA
Sealed Power Engine Piston Set H1522CPA - view 2
Sealed Power Engine Piston Set H1522CPA
Sealed Power Engine Piston Set H1522CPA - view 2

Vehicles this part fits
    Part number: H1522CPA
    UPC: 019826219572
    Condition: New
    Weight: 1.40 LBS
    Pack of 8
    $832.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert

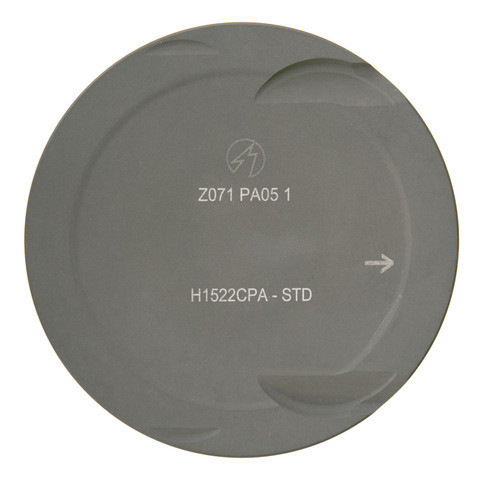

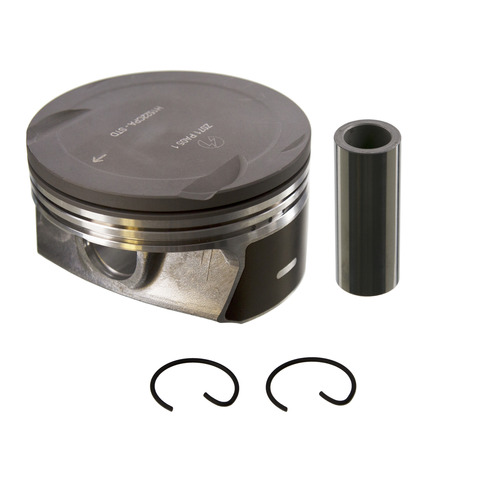

    Sealed Power Engine Piston Set P/N:H1522CPA (Pack of 8)
    Sealed Power Engine Piston Set P/N:H1522CPA (Pack of 8)
    $832.99
    $832.99

    Sealed Power H1522CPA piston set for the 2010-2014 Ford F-150 V8 6.2L and other vehicles carries combustion force to the connecting rods. These Sealed Power cast pistons replace worn or damaged pistons during an engine rebuild.

    • Hypereutectic piston cast with S2N proprietary alloy
    • Duroshield graphite coating helps prevent scuffing of the skirt and cylinder wall
    • Anodized ring grooves machined to reduce oil consumption, blow-by and emissions and to extend engine life
    • Ultra precise pin bores with precision-machined lube slots for controlled lubrication tolerances with either pin installation method

    Quick facts

    • Part: Sealed Power H1522CPA piston set
    • Also called: engine piston set
    • Fits: 2010-2014 Ford F-150 V8 6.2L and other vehicles
    • Material: Hypereutectic
    • Condition: New

    Heavy oil consumption, blue exhaust smoke or low compression can mean worn pistons or rings. Those signs alone do not prove the pistons are at fault, since worn valve seals can burn oil too.

    Fits

    The 2010-2014 Ford F-150 V8 6.2L, the 2011-2020 Ford F-250 Super Duty V8 6.2L and the 2011-2020 Ford F-350 Super Duty V8 6.2L all take this piston set, along with more vehicles. The V8 6.2L takes eight pistons. If your truck is not named here, look up its year and engine in the “Vehicles it fits” section.

    Specifications

    Fit and size

    • Quantity per vehicle: 8
    • Compression height: 33.25 mm
    • Piston pin outside diameter: 24.00 mm
    • Top compression ring thickness: 1.50 mm
    • Second compression ring thickness: 1.50 mm
    • Piston head type: Dish
    • Oversized: No

    Build and materials

    • Type: Cast piston set
    • Material: Hypereutectic
    • Coating: Duroshield graphite
    • Condition: New
    • Country of origin: India

    Interchange: 224-3898 · P5093(8)STD
    P4224

    This part cross-references / interchanges with the following part numbers:

    P4224, P5093(8)STD, 224-3898

    Frequently Asked Questions

    Does the 2011-2020 Ford F-250 Super Duty V8 6.2L take this piston set?

    Yes. Sealed Power H1522CPA fits the 2011-2020 Ford F-250 Super Duty V8 6.2L, and that engine takes eight pistons.

    Are Sealed Power hypereutectic pistons coated?

    Yes. Sealed Power H1522CPA pistons have a Duroshield graphite coating that helps prevent scuffing of the skirt and cylinder wall.

    What should I know about the pin bores on this engine piston set?

    The pin bores are ultra precise, with precision-machined lube slots that keep lubrication tolerances controlled with either pin installation method.

    Do Sealed Power pistons in this set come with assembly lubricant?

    No. Assembly lubricant is not included with this piston set.

    What is the compression height of this Sealed Power engine piston?

    The compression height is 33.25 mm. The piston has a dish head and a 24.00 mm piston pin outside diameter.
