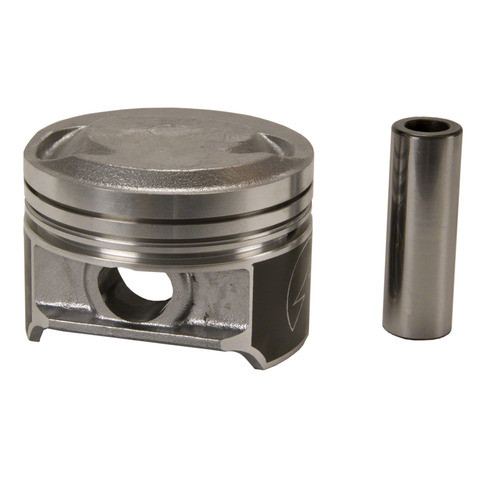

Sealed H868CP engine piston for the 1998-2002 Chevrolet Camaro V8 5.7L and other vehicles seals the combustion chamber and passes combustion force down to the connecting rod.
- Helps improve cylinder sealing for less blow-by
- Retains standard ring gaps in top groove
- DUROSHIELD® skirt-coated piston
- Moly-graphite coating extends engine life and reduces friction for higher fuel economy
- Helps prevent damage from inadequate lubrication on start-up
- Hypereutectic piston material with a flat head
Quick facts
- Part: Sealed H868CP engine piston
- Fits: the 1998-2002 Chevrolet Camaro V8 5.7L and other vehicles
- Material: Hypereutectic
- Condition: New
Oil burning, heavy blow-by or lost power can mean worn pistons or rings, but worn valves or seals can give similar symptoms. With the engine apart and cool, a first check is to look over the cylinder walls for scoring and measure each bore against the size in the specifications. A compression or leak-down test is a job for a shop.
Fits
Chevrolet, Cadillac and Pontiac V8 5.7L models are on the application list, including the 2004-2005 Cadillac CTS V8 5.7L and the 1997-2004 Chevrolet Corvette V8 5.7L. A V8 takes eight pistons, one for each cylinder. If your car is not named here, open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Bore diameter: 3.897 in
- Piston pin outside diameter: 0.945 in
- Compression height: 1.328 in
- Pin offset: 0.03 in (0.762 mm)
- Ring thickness: top compression 1.50 mm, second compression 1.50 mm, oil ring 3.00 mm
- Quantity per vehicle: 8
Build and materials
- Piston material: Hypereutectic
- Construction: Cast
- Head type: Flat
- Skirt coating: DUROSHIELD
- Size: Standard (not oversized)
- Condition: New
- Country of origin: India
In the box
Engine pistons. Assembly lubricant is not included.
Interchange: P5081(8)STD · 224-2991
TC2991 · P3159 · 12456108 · 12533554 · 88894011 · 88984245
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
TC2991, P3159, P5081(8)STD, 12456108, 12533554, 88894011, 88984245, 224-2991
Frequently Asked Questions
Is the Sealed H868CP piston right for a 1998-2002 Chevrolet Camaro V8 5.7L?
Yes. Sealed H868CP is listed for the 1998-2002 Chevrolet Camaro V8 5.7L. For another model or engine, open the "Vehicles it fits" section and check your car there.
What is the DUROSHIELD coating on these pistons?
DUROSHIELD is the skirt coating on this piston. A moly-graphite coating extends engine life and reduces friction for higher fuel economy.
Does Sealed H868CP come with assembly lubricant?
No. Assembly lubricant is not included with Sealed H868CP, so it is a separate purchase.
What bore size does this hypereutectic piston have?
The bore diameter is 3.897 in, the piston pin outside diameter is 0.945 in and the compression height is 1.328 in.
Is Sealed H868CP an oversize piston?
No. Sealed H868CP is a standard-size piston, not an oversize one, and it retains standard ring gaps in the top groove.
