Engine Piston for 1990-1997 Chevrolet Camaro & More - Sealed H597DCP 40

$328.99

Vehicles this part fits

    Part number: H597DCP40
    UPC: 019826500854
    Condition: New
    Weight: 5.84 LBS
    Pack of 8
    $328.99
    Adding to cart… The item has been added

    Have questions?

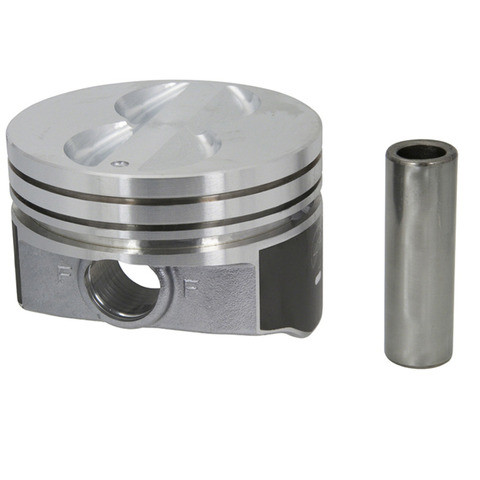

    Sealed Power Engine Piston Set P/N:H597DCP 40 (Pack of 8)
    Sealed Power Engine Piston Set P/N:H597DCP 40 (Pack of 8)
    $328.99
    $328.99

    Sealed H597DCP 40 engine piston for the 1990-1997 Chevrolet Camaro V8 5.7L and other vehicles transfers combustion pressure to the connecting rod. It moves in the cylinder bore and forms the floor of the combustion chamber.

    • Hypereutectic piston material
    • Strength and scuff resistance that allow a tighter bore and improve sealing for less blow-by
    • Barrel skirt profiles help optimize the oil wedge between skirt and wall
    • Piston skirts protected by DUROSHIELD coating
    • TAC ring groove geometry
    • Weights matched to within +/- 2 grams

    Quick facts

    • Part: Sealed H597DCP 40 engine piston
    • Fits: 1990-1997 Chevrolet Camaro V8 5.7L and other vehicles
    • Material: Hypereutectic
    • Condition: New

    Worn pistons can show up as oil consumption, blow-by or a cold-engine knock. These signs alone do not prove a piston is at fault, since worn valve guides can burn oil too.

    Fits

    This V8 5.7L piston set is also a direct-fit replacement for the 1994-1996 Chevrolet Impala V8 5.7L and the 1990-1997 Pontiac Firebird V8 5.7L. If your car is not named, find its year and engine in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Quantity per vehicle: 8
    • Bore diameter: 4.0000 in
    • Oversize: 0.040 in
    • Compression height: 1.550 in
    • Top compression ring thickness: 2.00 mm
    • Second compression ring thickness: 1.50 mm
    • Oil ring thickness: 4.00 mm

    Build and materials

    • Piston head type: Flat
    • Piston material: Hypereutectic
    • Skirt coating: DUROSHIELD
    • Weight matching: +/- 2 grams
    • Condition: New
    • Country of origin: India

    In the box

    This listing is one piston set; the V8 5.7L engines take eight pistons. Assembly lubricant is not included.

    Interchange: P3142.40

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    P3142.40

    Frequently Asked Questions

    Is the Sealed H597DCP 40 piston set right for the 1990-1997 Pontiac Firebird V8 5.7L?

    Yes. Sealed H597DCP 40 fits the 1990-1997 Pontiac Firebird V8 5.7L, and that engine takes eight pistons. For another car, look in the "Vehicles it fits" section.

    What oversize and bore diameter does this piston set list?

    This piston set is 0.040 inch oversize and lists a bore diameter of 4.0000 inches. Its compression height is 1.550 inches.

    Does the Sealed H597DCP 40 set come with assembly lube?

    No. Assembly lubricant is not included with this Sealed H597DCP 40 piston set.

    What is the DUROSHIELD coating on these pistons?

    DUROSHIELD is the coating that protects the piston skirts. The skirts also have barrel profiles that help optimize the oil wedge between skirt and wall.

    Is P3142.40 a cross-reference for this piston set?

    Yes. P3142.40 is an interchange number for the Sealed H597DCP 40 piston set.
