Engine Piston for 1990-1997 Chevrolet Camaro & More - Sealed Power H597DCP 30

$328.99

Vehicles this part fits

    Part number: H597DCP30
    UPC: 019826500847
    Condition: New
    Weight: 5.84 LBS
    Pack of 8
    $328.99
    Adding to cart… The item has been added

    Have questions?

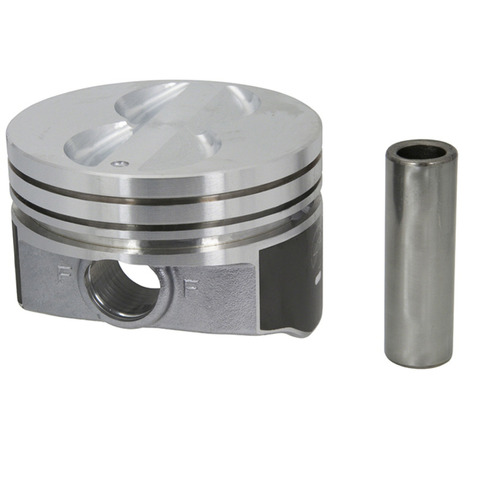

    Sealed Power Engine Piston Set P/N:H597DCP 30 (Pack of 8)
    Sealed Power Engine Piston Set P/N:H597DCP 30 (Pack of 8)
    $328.99
    $328.99

    Sealed Power H597DCP 30 engine piston for the 1990-1997 Chevrolet Camaro V8 5.7L and other vehicles transfers combustion force from the combustion chamber to the connecting rod.

    • Hypereutectic material for strength and scuff resistance; allows a tighter bore and improves sealing for less blow-by
    • Barrel-profile skirts help optimize the oil wedge between skirt and cylinder wall
    • Piston skirts protected by next-generation DUROSHIELD coating
    • TAC ring groove geometry
    • Pistons weight matched to +/- 2 grams

    Quick facts

    • Part: Sealed Power H597DCP 30 engine piston
    • Fits: 1990-1997 Chevrolet Camaro V8 5.7L and other vehicles
    • Material: Hypereutectic
    • Condition: New

    Heavy oil use, blow-by or a knock from a cold engine can mean worn pistons, though worn piston rings or a worn cylinder bore can be behind the same signs, so find the cause before you replace anything.

    Fits

    This piston is listed for a wide range of Chevrolet, Pontiac, Buick, Cadillac and Oldsmobile models, including the 1994-1996 Chevrolet Impala V8 5.7L and the 1990-1997 Pontiac Firebird V8 5.7L. Open the "Vehicles it fits" section to check your exact model and engine.

    Specifications

    Fit and size

    • Quantity per vehicle: 8
    • Bore diameter: 4.0000 in
    • Oversize: 0.030 in
    • Compression height: 1.550 in
    • Top compression ring thickness: 2.00 mm
    • Second compression ring thickness: 1.50 mm
    • Oil ring thickness: 4.00 mm

    Build and materials

    • Piston head type: Flat
    • Material: Hypereutectic
    • Skirt coating: DUROSHIELD
    • Condition: New
    • Country of origin: India

    In the box

    One engine piston set. The V8 5.7L engines it covers use eight pistons. Assembly lubricant is not included.

    Interchange: P3142.30

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    P3142.30

    Frequently Asked Questions

    Is the Sealed Power H597DCP 30 engine piston right for a 1994-1996 Chevrolet Impala V8 5.7L?

    Yes. Sealed Power H597DCP 30 is listed for the 1994-1996 Chevrolet Impala V8 5.7L, as well as the 1990-1997 Chevrolet Camaro V8 5.7L.

    Does this Sealed Power piston set come with assembly lubricant?

    No. Assembly lubricant is not included. This listing is the engine piston set only.

    What bore size and oversize is the H597DCP 30 piston set?

    Sealed Power H597DCP 30 is for a 4.0000 in bore diameter and is 0.030 in oversize. Compression height is 1.550 in.

    How can I tell when engine pistons like the Sealed Power H597DCP 30 are worn?

    Heavy oil use, blow-by and a knock from a cold engine can all be signs of worn pistons. A shop can test compression and measure the bores against spec.

    Are the skirts on these hypereutectic pistons coated?

    Yes. The skirts on Sealed Power H597DCP 30 have a DUROSHIELD coating, and the pistons are weight matched to +/- 2 grams.
