Engine Piston for 1990-1997 Chevrolet Camaro & More - Sealed Power H597DCP

$328.99

Vehicles this part fits

    Part number: H597DCP
    UPC: 019826500823
    Condition: New
    Weight: 5.84 LBS
    Pack of 8
    $328.99
    Adding to cart… The item has been added

    Have questions?

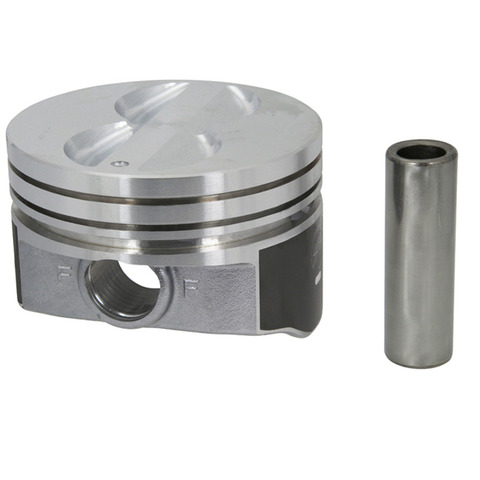

    Sealed Power Engine Piston Set P/N:H597DCP (Pack of 8)
    Sealed Power Engine Piston Set P/N:H597DCP (Pack of 8)
    $328.99
    $328.99

    Sealed Power H597DCP engine piston for the 1990-1997 Chevrolet Camaro V8 5.7L and other vehicles transfers combustion force to the connecting rod. This Sealed Power engine piston set is a cast, flat-head design.

    • Hypereutectic piston with exclusive FM425 material for strength and scuff resistance
    • FM425 material allows a tighter bore and improves sealing for less blow-by
    • Barrel profiles help optimize the oil wedge between skirt and cylinder wall
    • Next-gen DUROSHIELD coating protects the piston skirts
    • TAC ring groove geometry
    • Pistons weight matched to +/- 2 grams

    Quick facts

    • Part: Sealed Power H597DCP engine piston
    • Fits: 1990-1997 Chevrolet Camaro V8 5.7L and other vehicles
    • Material: Hypereutectic
    • Condition: New

    Worn pistons can show up as blue exhaust smoke, rising oil use or a knock from the engine when cold. These signs alone do not prove the pistons are at fault; worn valve stem seals can burn oil too.

    Fits

    The Sealed Power H597DCP is a flat-head piston set for V8 5.7L engines, including the 1994-1996 Chevrolet Impala V8 5.7L and the 1990-1997 Pontiac Firebird V8 5.7L. Driving something else? Look up your year, model and engine in the Vehicles it fits section.

    Specifications

    Fit and size

    • Bore diameter: 4.0000 in
    • Compression height: 1.550 in
    • Top compression ring thickness: 2.00 mm
    • Second compression ring thickness: 1.50 mm
    • Oil ring thickness: 4.00 mm
    • Quantity per vehicle: 8
    • Size: not oversized
    • Pin type: P or F

    Build and materials

    • Type: cast piston set
    • Piston material: Hypereutectic
    • Piston head: flat
    • Skirt coating: DUROSHIELD
    • Ring groove geometry: TAC
    • Weight matched to +/- 2 grams
    • Condition: New
    • Country of origin: India

    In the box

    One engine piston set. The engines it fits take eight pistons. Assembly lubricant is not included.

    Interchange: P3142

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    P3142

    Frequently Asked Questions

    Does the Sealed Power H597DCP fit the 1994-1996 Chevrolet Impala V8 5.7L?

    Yes, Sealed Power H597DCP is listed for the 1994-1996 Chevrolet Impala V8 5.7L and the 1990-1997 Pontiac Firebird V8 5.7L; for other cars, look up your year and engine in the Vehicles it fits section.

    Is assembly lubricant included with these Sealed Power pistons?

    No, assembly lubricant is not included. This listing is one piston set, and the engines it fits take eight pistons.

    Are these Sealed Power hypereutectic pistons coated?

    Yes. The piston skirts of the Sealed Power H597DCP carry a DUROSHIELD coating, and the pistons are weight matched to +/- 2 grams.

    Are these Sealed Power cast pistons oversized?

    No. The Sealed Power H597DCP is not oversized; it has a 4.0000 in bore and a 1.550 in compression height.

    Does P3142 cross-reference to the H597DCP piston set?

    Yes. P3142 is listed as an interchange number for the Sealed Power H597DCP piston set.
